Loudspeaker 78mm YD78-03-4F45PT-R Min Full Range Multimedia Speaker Drivers

  • Loudspeaker 78mm YD78-03-4F45PT-R Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co LtdModelYD78-03-4F45PT-RDimension:78*78*44H mmCone Material:PaperEdge:FoamNominal Power:10WMaximum Power:1

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD78-03-4F45PT-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 78mm YD78-03-4F45PT-R Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD78-03-4F45PT-R

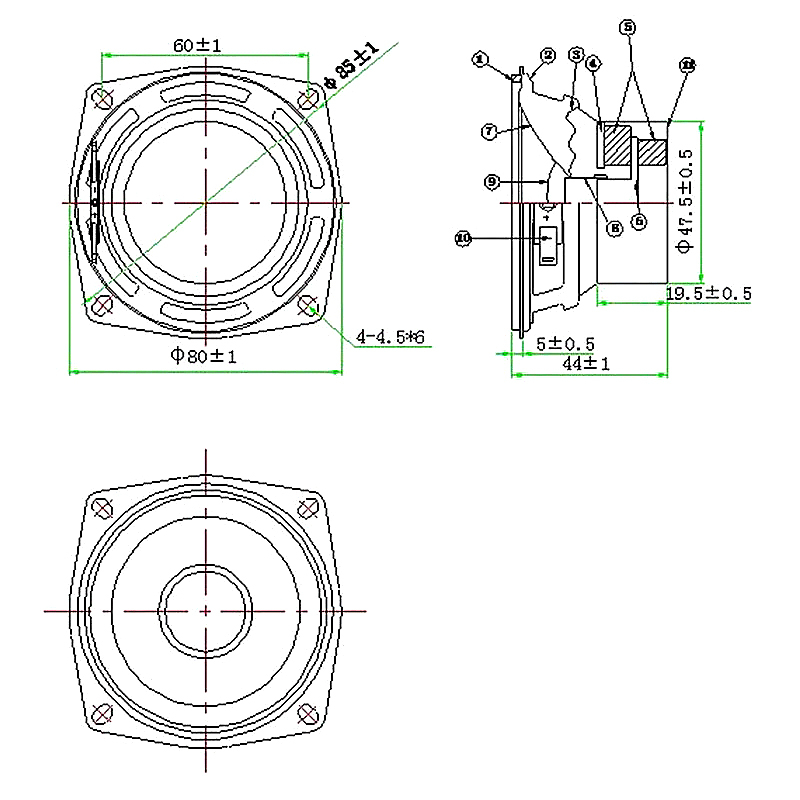

Dimension:78*78*44H mm
Cone Material:Paper
Edge:Foam
Nominal Power:10W
Maximum Power:12W
Impedance:4±15%Ω
Voice coil:Φ13.28mm KSV+Cu
Fo:130±20%Hz

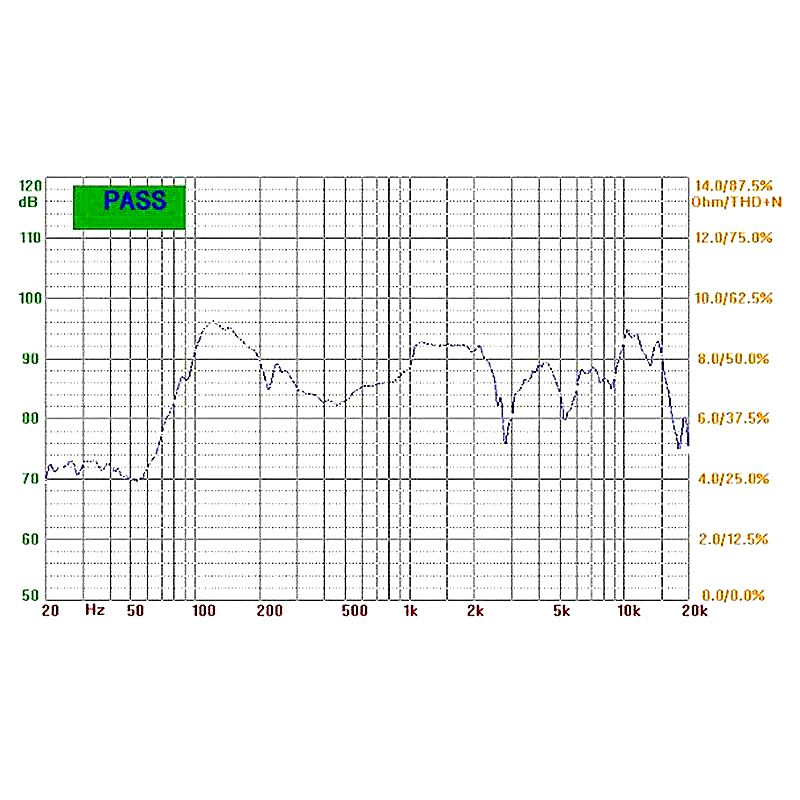

Response:Fo~20KHZ
S.P.L:88±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ45*22*8+32*18*6mm
Net weight:170g±8%
