Medical Equipment Speaker

Loudspeaker 102mm YD102-27-8F60P-R Min Full Range Equipment Speaker Drivers

  • Loudspeaker 102mm YD102-27-8F60P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co LtdModelYD102-27-8F60P-RDimension:102*102*37.5H mmCone Material:PaperEdge:PaperNominal Power:10WMaximu

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD102-27-8F60P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 102mm YD102-27-8F60P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd







ModelYD102-27-8F60P-R

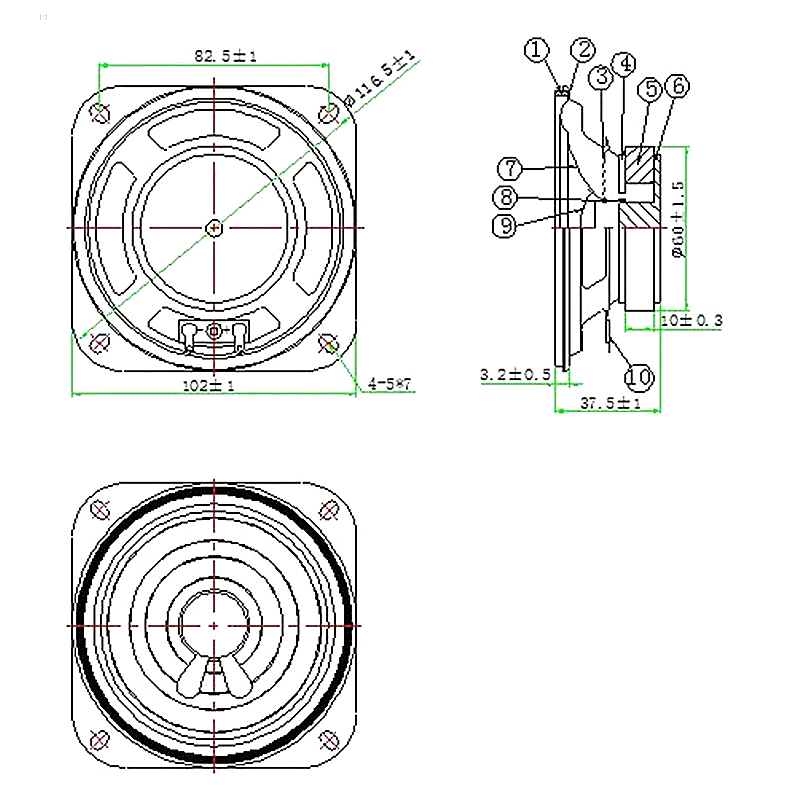

Dimension:102*102*37.5H mm
Cone Material:Paper
Edge:Paper
Nominal Power:10W
Maximum Power:15W
Impedance:8Ω±15%Ω
Voice coil:Φ19.45mm ASV+Cu
Fo:150±20%

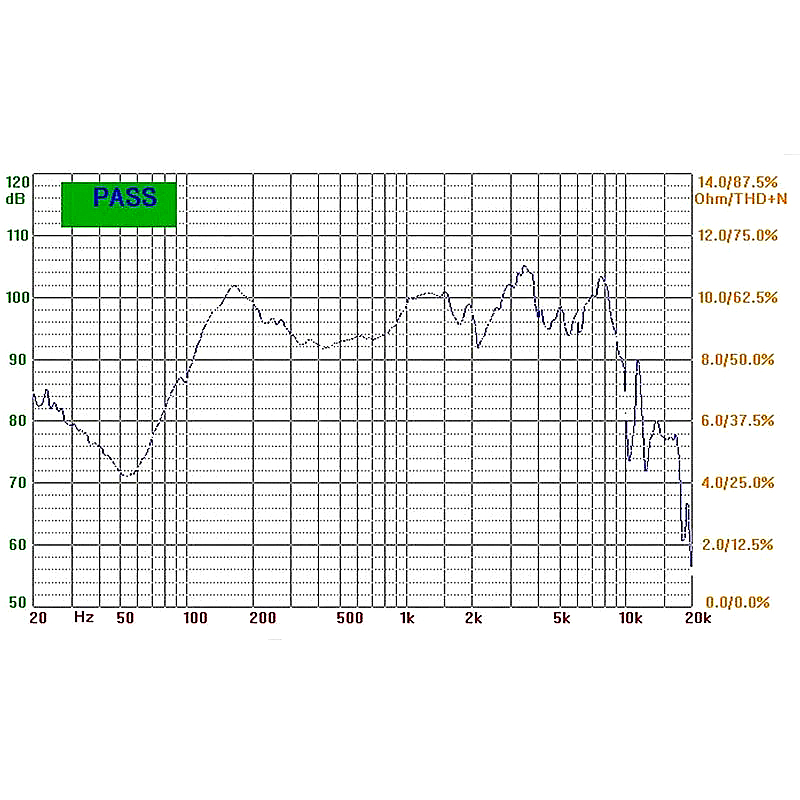

Response:Fo~10KHZ
S.P.L:97±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ60*32*10mm
Net weight:250g±8%
