Medical Equipment Speaker

Loudspeaker 45mm YD45-01-8F32P-R Min Full Range Equipment Speaker Drivers

  • Loudspeaker 45mm YD45-01-8F32P-R Full Range Equipment Speaker Drivers-Changzhou Esuntech Co LtdModelYD45-01-8F32P-RDimension:Φ45*15H mmCone Material:PaperEdge:PaperNominal Power:2WMaximum Power:3WImpe

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD45-01-8F32P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 45mm YD45-01-8F32P-R Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD45-01-8F32P-R

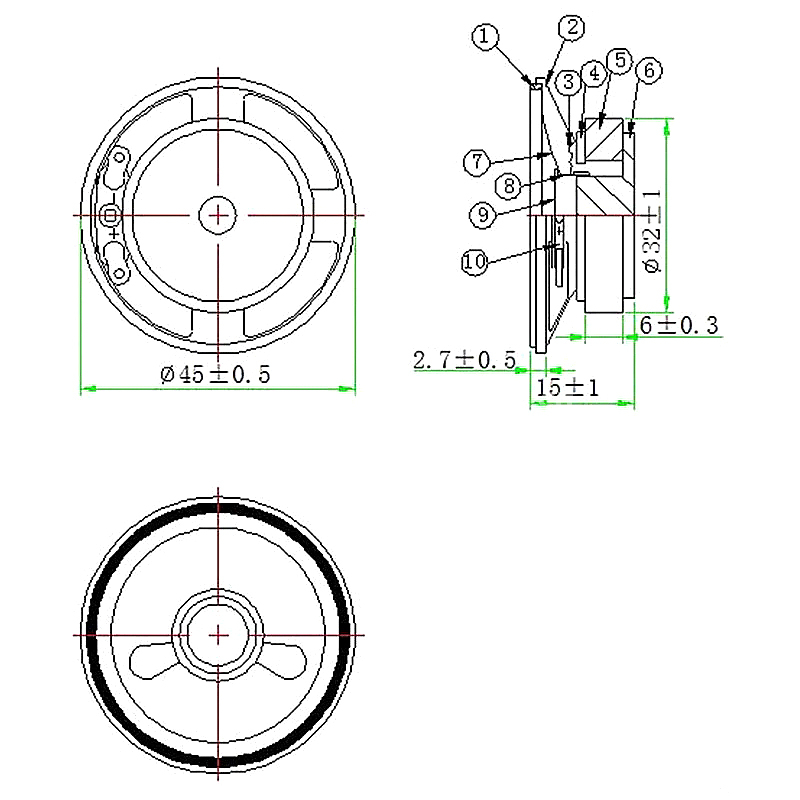

Dimension:Φ45*15H mm
Cone Material:Paper
Edge:Paper
Nominal Power:2W
Maximum Power:3W
Impedance:8Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:620±20%
Response:Fo~5KHZ
S.P.L:92±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ32*18*6mm
Net weight:45g±8%
