Medical Equipment Speaker

Loudspeaker 41mm YD41-01-8N12.5P-R Min Full Range Equipment Speaker Drivers

  • Loudspeaker 41mm YD41-01-8N12.5P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co LtdModelYD41-01-8N12.5P-RDimension:Φ41*57*16.5H mmCone Material: PaperEdge: PaperNominal Power:2WMaxim

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD41-01-8N12.5P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 41mm YD41-01-8N12.5P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD41-01-8N12.5P-R

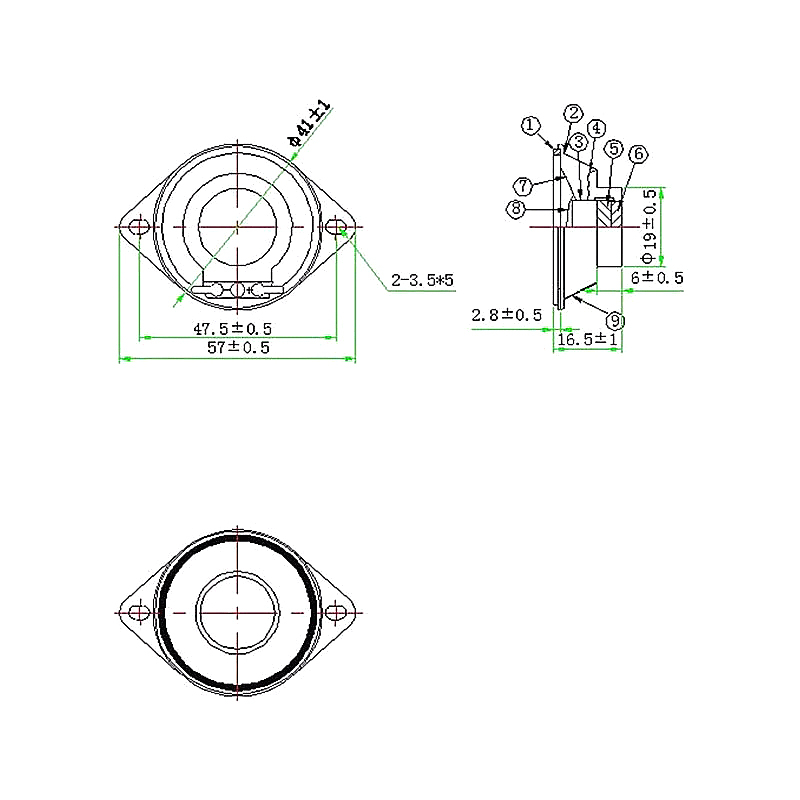

Dimension:Φ41*57*16.5H mm
Cone Material: Paper
Edge: Paper
Nominal Power:2W
Maximum Power:3W
Impedance:8Ω±15%Ω
Voice coil:Φ16.28mm  KSV+Cu
Fo:1080±20%

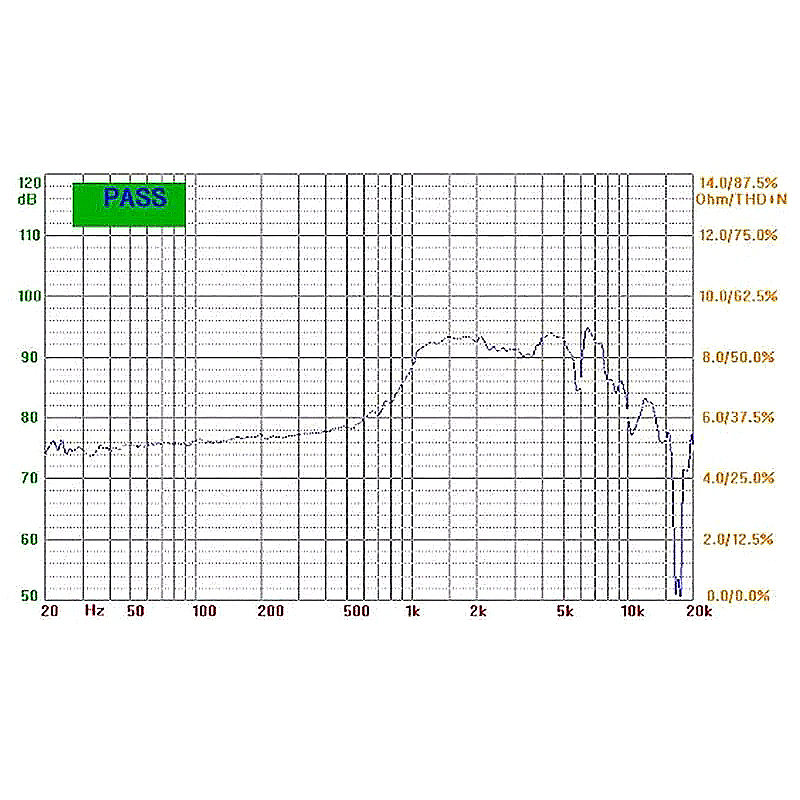

Response:Fo~10KHZ
S.P.L:91±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2.5Hmm
Net weight:20g±8%
