Loudspeaker

Loudspeaker 66mm YD66-34-4F12.5P-R Min Full Range Multimedia Speaker Drivers

  • Loudspeaker 66mm YD66-34-4F12.5P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co LtdModelYD66-34-4F12.5P-RDimension:66*66*22H mmCone Material:PaperEdge:FoamNominal Power:3WMaximum Po

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD66-34-4F12.5P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 66mm YD66-34-4F12.5P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD66-34-4F12.5P-R

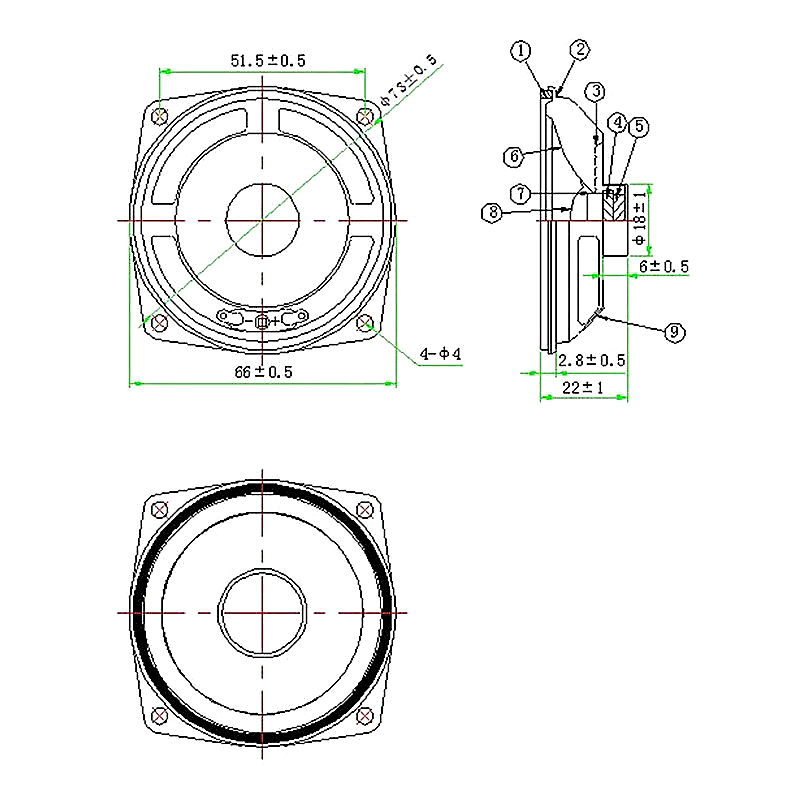

Dimension:66*66*22H mm
Cone Material:Paper
Edge:Foam
Nominal Power:3W
Maximum Power:5W
Impedance:4±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:200±20%Hz

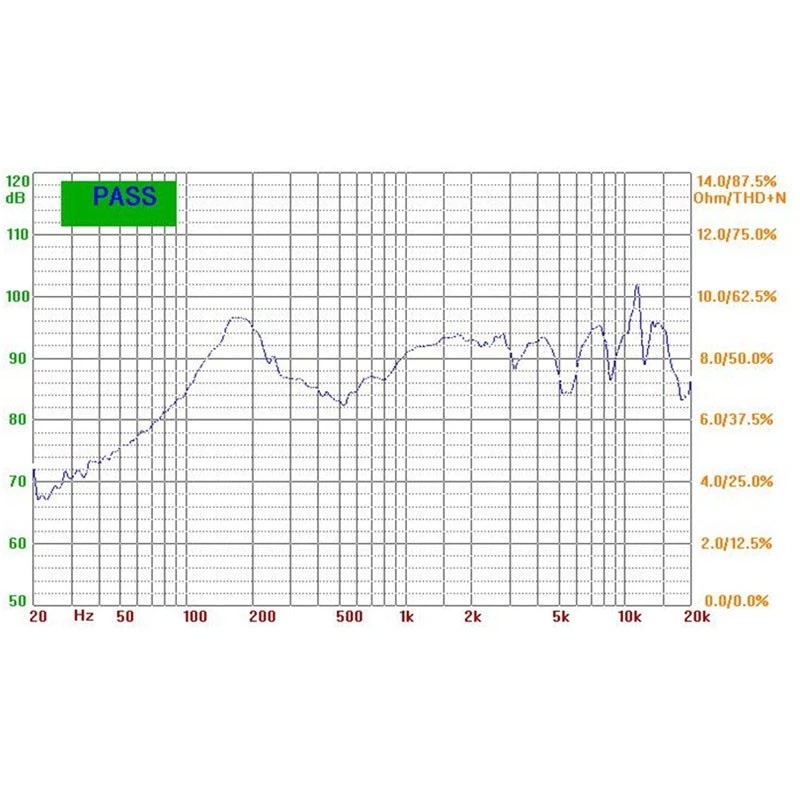

Response:Fo~20KHZ
S.P.L:88±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ12.5*3mm
Net weight:23g±8%
