Loudspeaker 78mm YD78-02-8F45P-R Min Full Range Multimedia Speaker Drivers

  • Loudspeaker 78mm YD78-02-8F45P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co LtdModelYD78-02-8F45P-RDimension:Φ78*78*35H mmCone Material:PaperEdge:FoamNominal Power:10WMaximum Powe

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD78-02-8F45P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 78mm YD78-02-8F45P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD78-02-8F45P-R

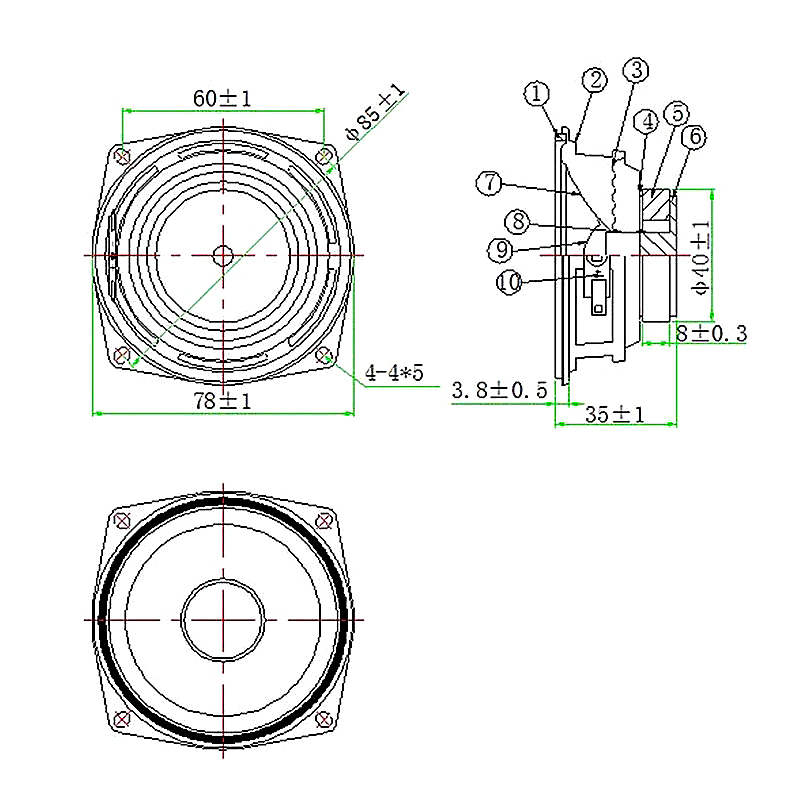

Dimension:Φ78*78*35H mm
Cone Material:Paper
Edge:Foam
Nominal Power:10W
Maximum Power:12W
Impedance:8±15%Ω
Voice coil:Φ13.28mm KSV+Cu
Fo:180±20%Hz
Response:Fo~20KHZ
S.P.L:90±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ45*19*8mm
Net weight:100g±8%
