Loudspeaker YD50-19F-25F27M 2 Inch Mylar Cone Waterproof Audio Speaker Drivers

  • Model YD50-19F-25F27MDiameter: Φ50mmCone Material:MaylarEdge:MaylarNominal Power:0.5wMaximum Power:1.0wImpedance:1615%ΩVoice coil:Φ10.3mmFo:30020%HzResponse:F

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-19F-25F27M
  • PDF
  • Description
  • Order

Product Description

2

                         Model                  YD50-19F-25F27M

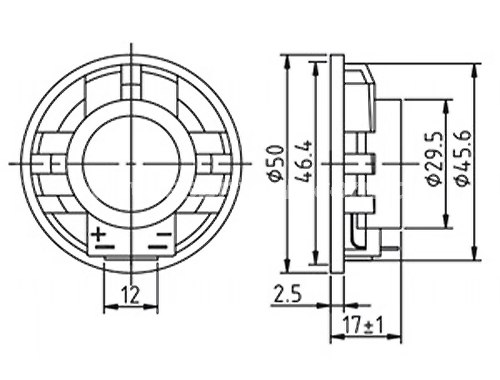

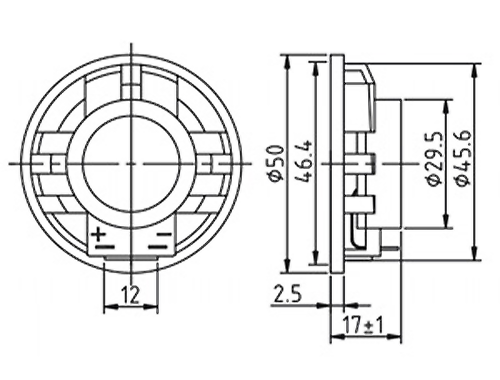

Diameter:

Φ50mm

Cone Material:

Maylar

Edge:

Maylar

Nominal Power:

0.5w

Maximum Power:

1.0w

Impedance:

16±15%Ω

Voice coil:

Φ10.3mm

Fo:

300±20%Hz

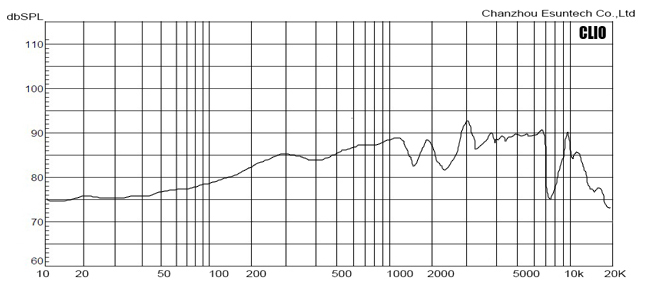

Response:

Fo-10kHz

S.P.L:

82±3dB/W/M

Magnet Size:

Φ27×Φ12.5×5(Ferrite)

Net weight:

32g

3
