Loudspeaker 77mm YD77-46-4F40P-R 4 OHM Min Full Range Multimedia Speaker Drivers

  • Loudspeaker 77mm YD77-46-4F40P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co LtdModelYD77-46-4F40P-RDimension:77*77*32.5H mmCone Material:PaperEdge:FoamNominal Power:8WMaximum Powe

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD77-46-4F40P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 77mm YD77-46-4F40P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD77-46-4F40P-R

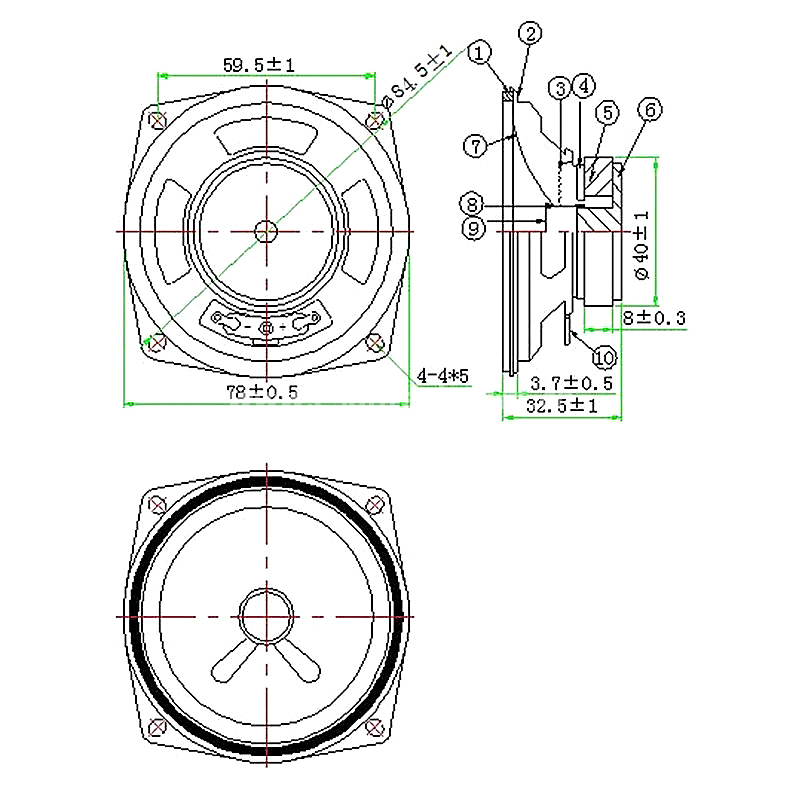

Dimension:77*77*32.5H mm
Cone Material:Paper
Edge:Foam
Nominal Power:8W
Maximum Power:10W
Impedance:4±15%Ω
Voice coil:Φ13.28mm KSV+Cu
Fo:180±20%Hz

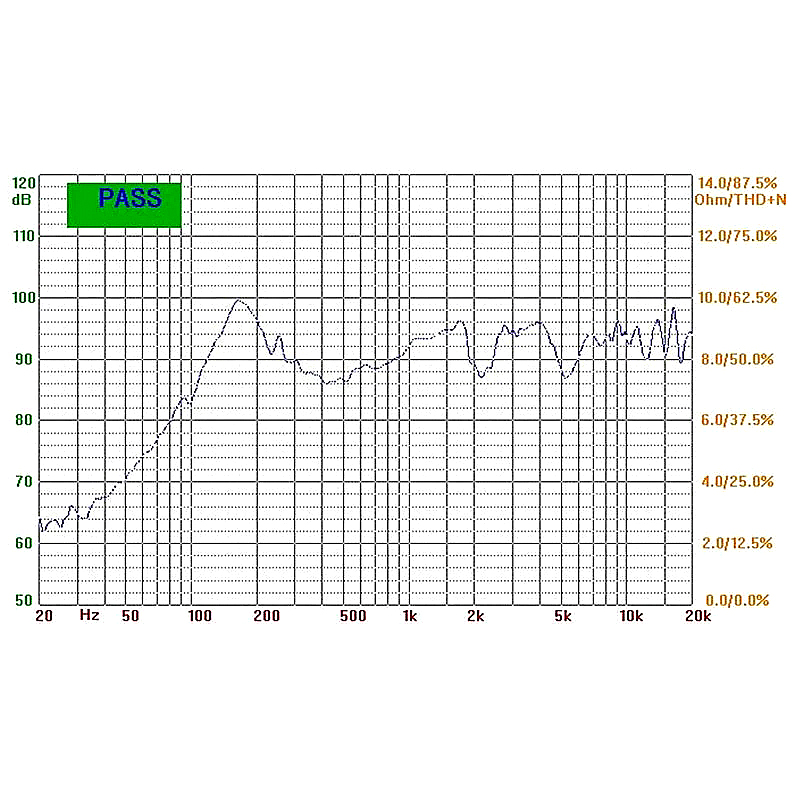

Response:Fo~20KHZ
S.P.L:91±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ40*19*8mm
Net weight:100g±8%
