Loudspeaker

Loudspeaker YD50-19C-25F27M 2 Inch Plastic Housing Audio Speaker Drivers

  • Model YD50-19C-25F27MDiameter:Φ50mmCone Material:MaylarEdge:MaylarNominal Power:1.0wMaximum Power:2.0wImpedance: 2515%ΩVoice coil:Φ10.3mmFo:27020%HzResponse:F

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-19C-25F27M
  • PDF
  • Description
  • Order

Product Description

2

                          Model                 YD50-19C-25F27M

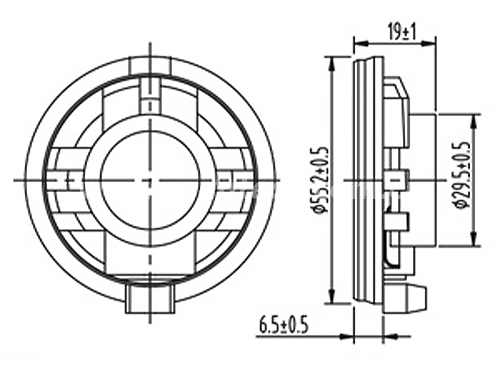

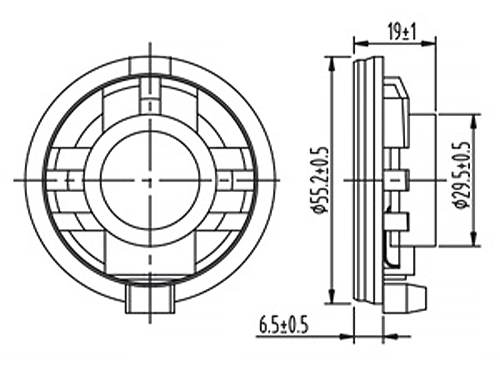

Diameter:

Φ50mm

Cone Material:

Maylar

Edge:

Maylar

Nominal Power:

1.0w

Maximum Power:

2.0w

Impedance:

25±15%Ω

Voice coil:

Φ10.3mm

Fo:

270±20%Hz

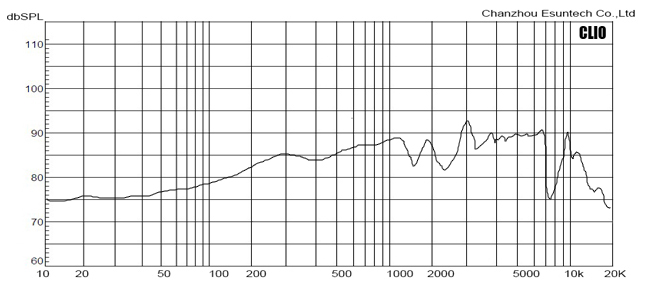

Response:

Fo-10kHz

S.P.L:

83±2dB/1.0W/0.5M

Magnet Size:

Φ27×Φ12.5×5(Ferrite)

Net weight:

39g
