Loudspeaker 102mm YD102-04-8F60P Min Full Range car Speaker Drivers

  • Loudspeaker 102mm YD102-04-8F60P Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD102-04-8F60PDimension:102*102*37.5H mmCone Material:PaperEdge:FoamNominal Power:5WMaximum Power:8WIm

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD102-04-8F60P
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 102mm YD102-04-8F60P Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD102-04-8F60P

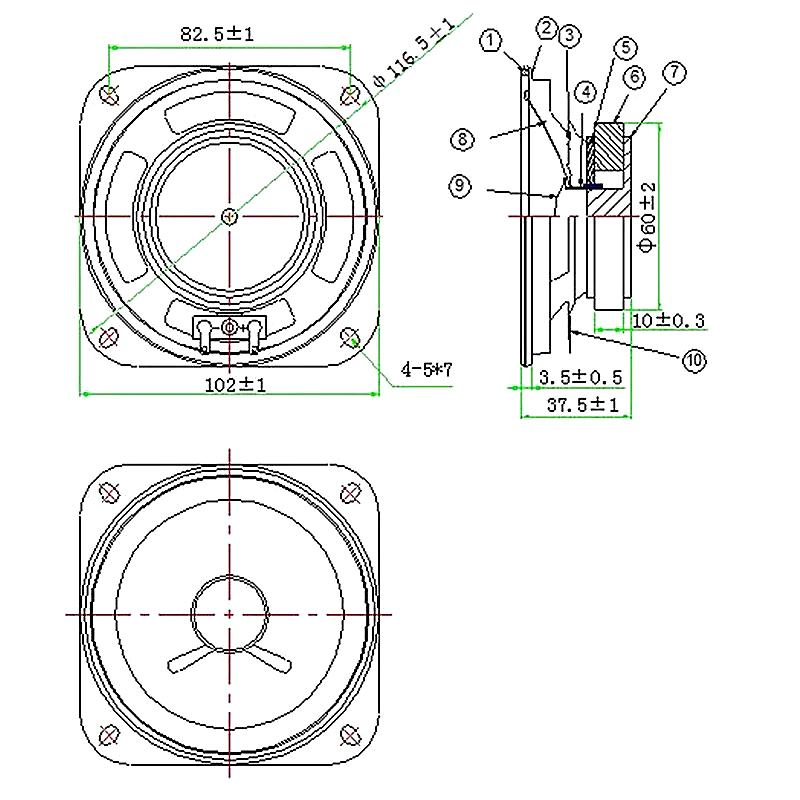

Dimension:102*102*37.5H mm
Cone Material:Paper
Edge:Foam
Nominal Power:5W
Maximum Power:8W
Impedance:8±15%Ω
Voice coil:Φ19.45mm ASV+Cu
Fo:130±20%Hz
Response:Fo~12KHZ
S.P.L:93±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ60*32*10mm
Net weight:250g±8%
