Loudspeaker

Loudspeaker YD50-19J-8N9.5M 2 Inch Plastic Housing Mylar Cone Waterproof Loudspeaker Drivers

  • Model YD50-19J-8N9.5MDiameter:Φ50mmCone Material:MaylarEdge:MaylarNominal Power:2.0wMaximum Power:4.0wImpedance: 820%ΩVoice coil:Φ10.3mmFo:30020%HzResponse

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-19J-8N9.5M
  • PDF
  • Description
  • Order

Product Description

2

                           Model

                   YD50-19J-8N9.5M

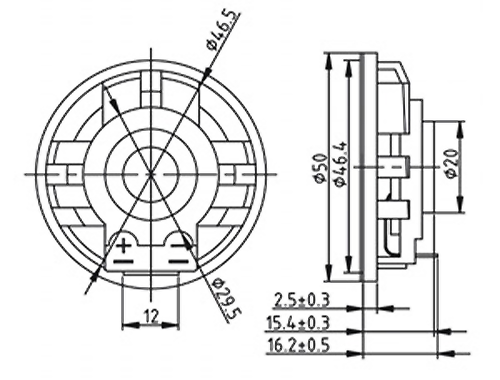

Diameter:

Φ50mm

Cone Material:

Maylar

Edge:

Maylar

Nominal Power:

2.0w

Maximum Power:

4.0w

Impedance:

8±20%Ω

Voice coil:

Φ10.3mm

Fo:

300±20%Hz

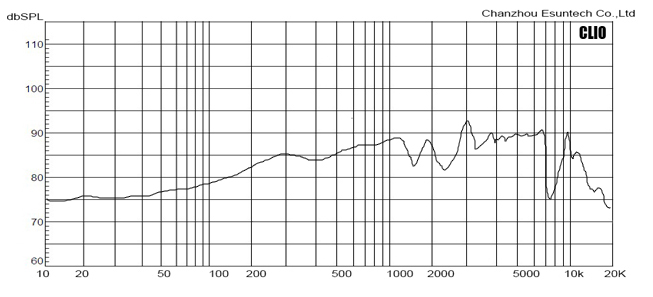

Response:

Fo-6.0kHz

S.P.L:

83±3dB/W/M

Magnet Size:

Φ9.5×3(NdFeB)

Net weight:

16g

3
