Loudspeaker YD50-11-4F39C 2 Inch 50mm Small Midrange Super Loud Audio Speaker Drivers

  • Model YD50-11-4F39CDiameter:Φ50mmCone Material:PaperEdge:PaperNominal Power:0.2wMaximum Power:0.4wImpedance: 815%ΩVoice coil:Φ13.3mmFo:45020%Hz Response:F

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-11-4F39C
  • PDF
  • Description
  • Order

Product Description

2

                           Model                    YD50-11-4F39C

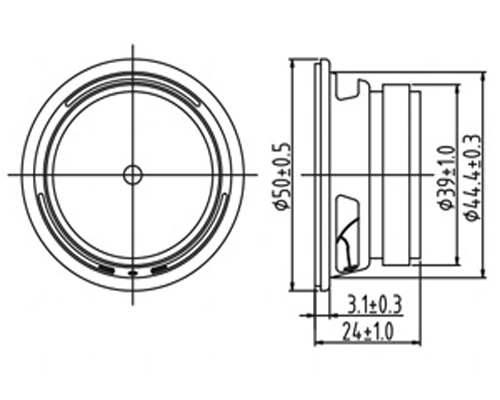

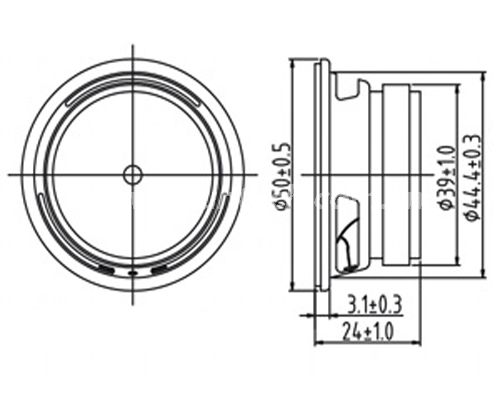

Diameter:

Φ50mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

0.2w

Maximum Power:

0.4w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

450±20%Hz

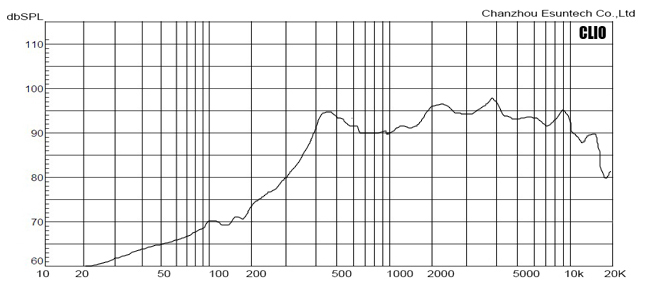

Response:

Fo-4kHz

S.P.L:

84±3dB/W/M

Magnet Size:

Φ40×18(Ferrit)

Net weight:

44.5g
