Loudspeaker 77mm YD77-43-8F40P-R 8 ohm Min Full Range Multimedia Speaker Drivers

  • Loudspeaker 77mm YD77-43-8F40P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co LtdModelYD77-43-8F40P-RDimension:77*77*28H mmCone Material:PaperEdge:FoamNominal Power:5WMaximum Power:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD77-43-8F40P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 77mm YD77-43-8F40P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD77-43-8F40P-R

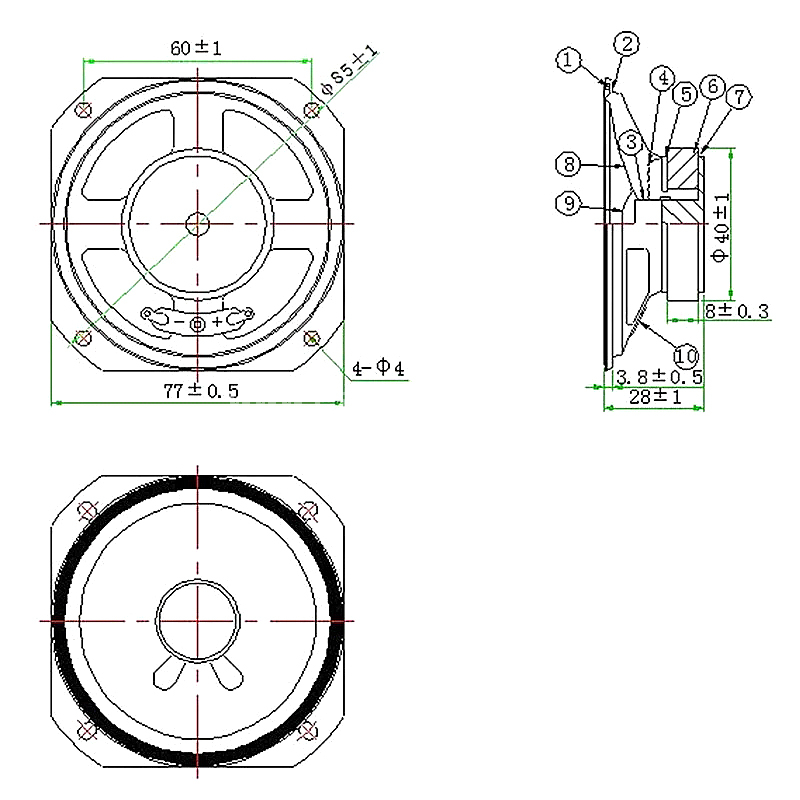

Dimension:77*77*28H mm
Cone Material:Paper
Edge:Foam
Nominal Power:5W
Maximum Power:6W
Impedance:8±15%Ω
Voice coil:Φ13.28mm KSV+Cu
Fo:250±20%Hz
Response:Fo~20KHZ
S.P.L:93±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ40*19*8mm
Net weight:100g±8%
