Product Description

Loudspeaker 102mm YD102-09-4F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD102-09-4F60P-R

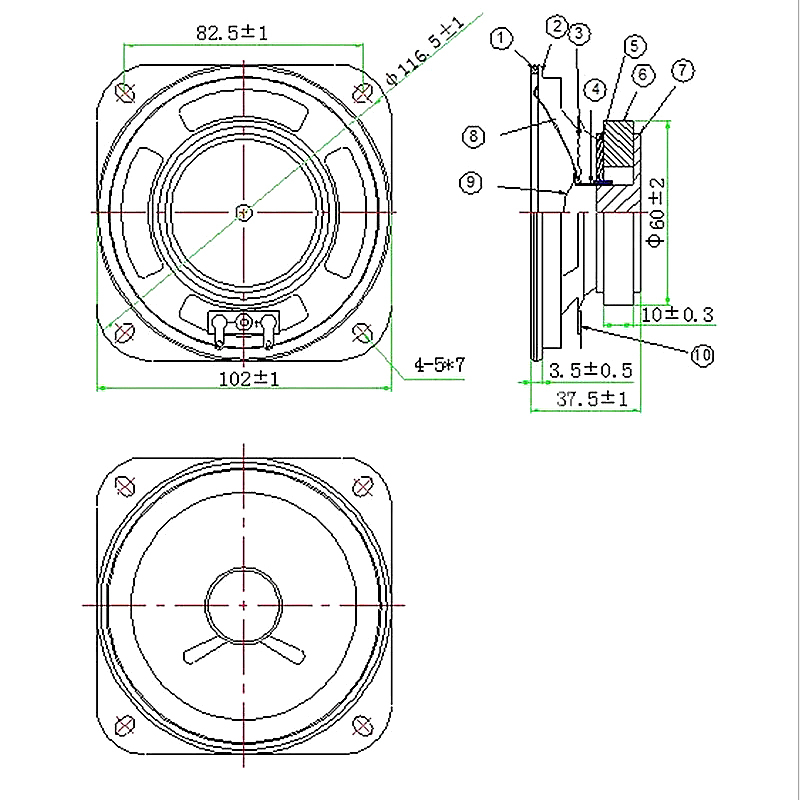

Dimension:102*102*37.5H mm
Cone Material:PP
Edge:Foam
Nominal Power:25W
Maximum Power:30W
Impedance:4±15%Ω
Voice coil:Φ19.45mm ASV+Cu
Fo:100±20%Hz

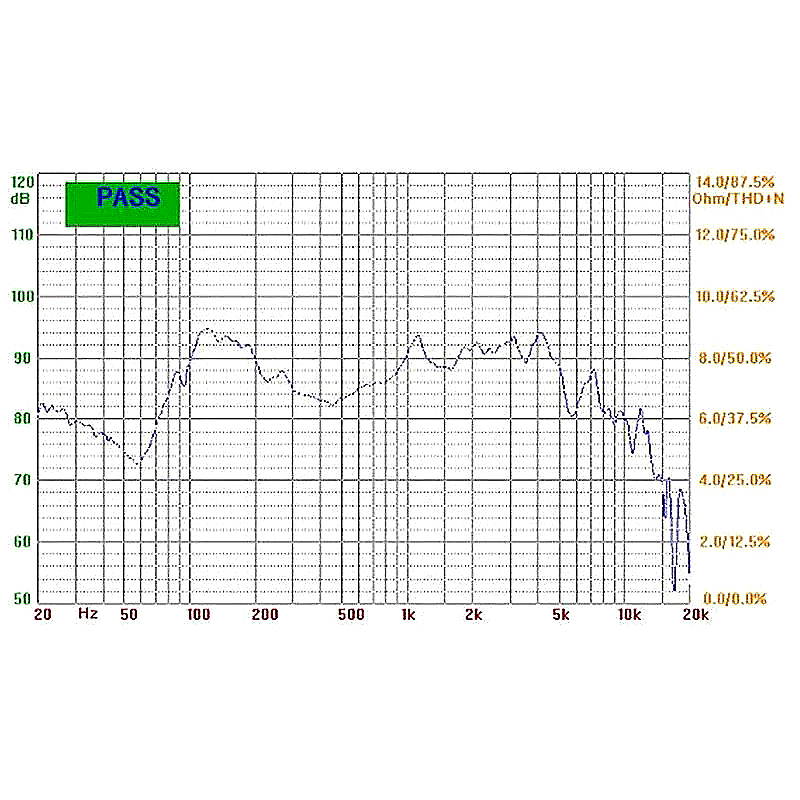

Response:Fo~10KHZ
S.P.L:86±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ60*32*10mm
Net weight:250g±8%
