Product Description

Loudspeaker 50mm YD50-45-6F40P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD50-45-6F40P-R

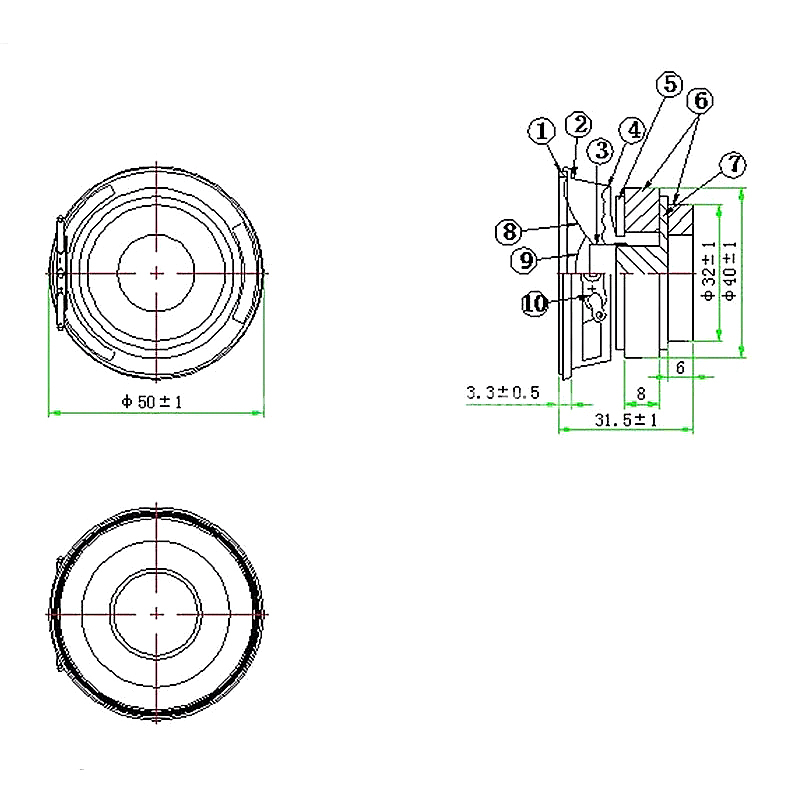

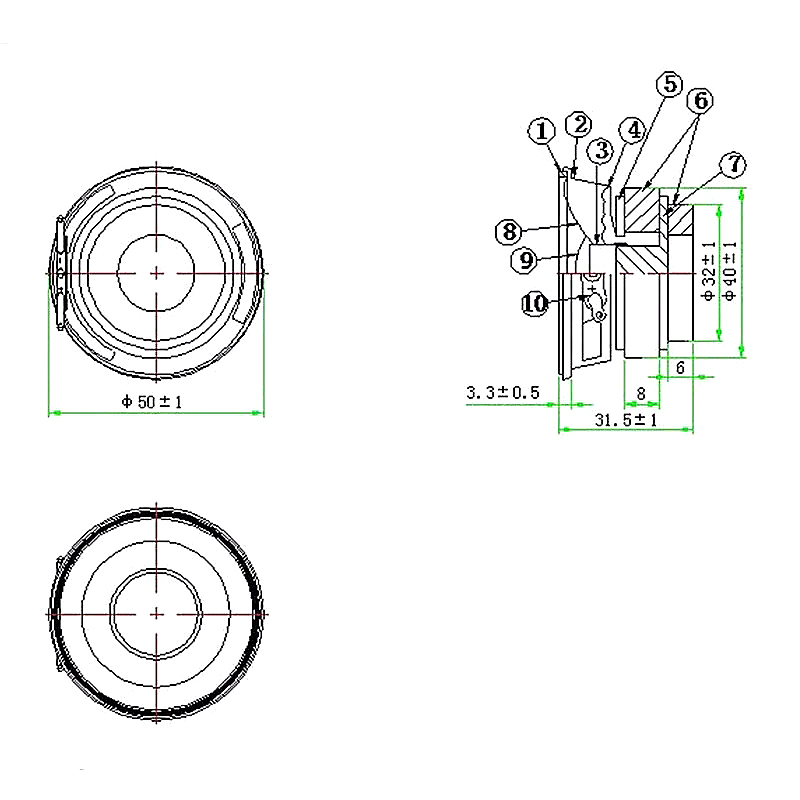

Dimension:Φ50*50*31.5H mm
Cone Material:Paper
Edge:Foam
Nominal Power:3W
Maximum Power:5W
Impedance:6±15%Ω
Voice coil:Φ13.28mm PSV+Cu
Fo:230±20%Hz
Response:Fo~20KHZ
S.P.L:91±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ40*19*8/Φ32*18*6mm
Net weight:103g±8%
