Medical Equipment Speaker

Loudspeaker 77mm YD77-41-4F32P-R Min Full Range Equipment Speaker Drivers

  • Loudspeaker 77mm YD77-41-4F32P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co LtdModelYD77-41-4F32P-RDimension:77*77*25H mmCone Material:PaperEdge:PaperNominal Power:3WMaximum Power:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD77-41-4F32P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 77mm YD77-41-4F32P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD77-41-4F32P-R

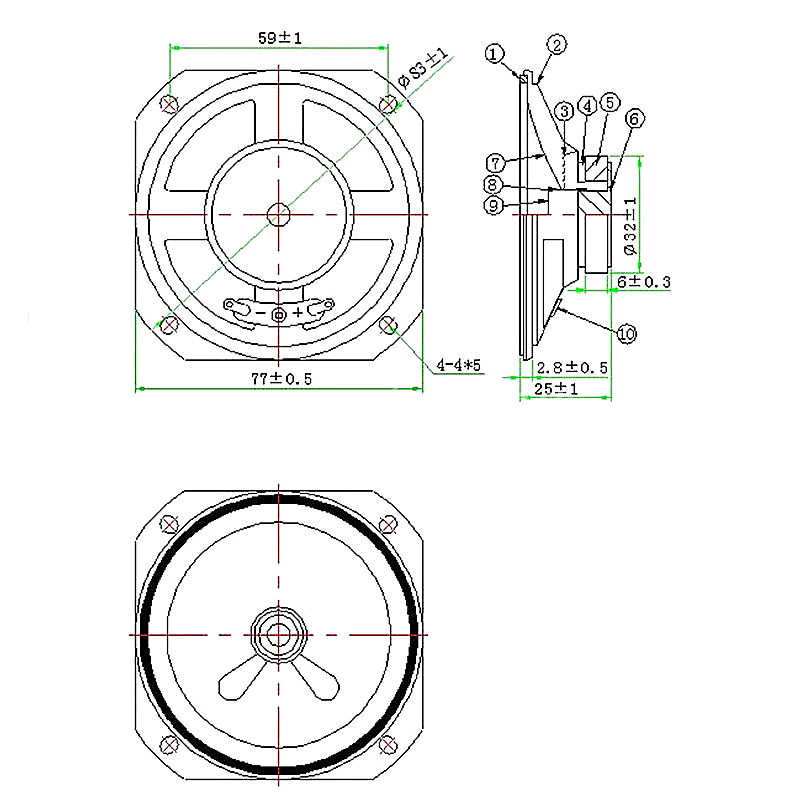

Dimension:77*77*25H mm
Cone Material:Paper
Edge:Paper
Nominal Power:3W
Maximum Power:4W
Impedance:4Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:280±20%

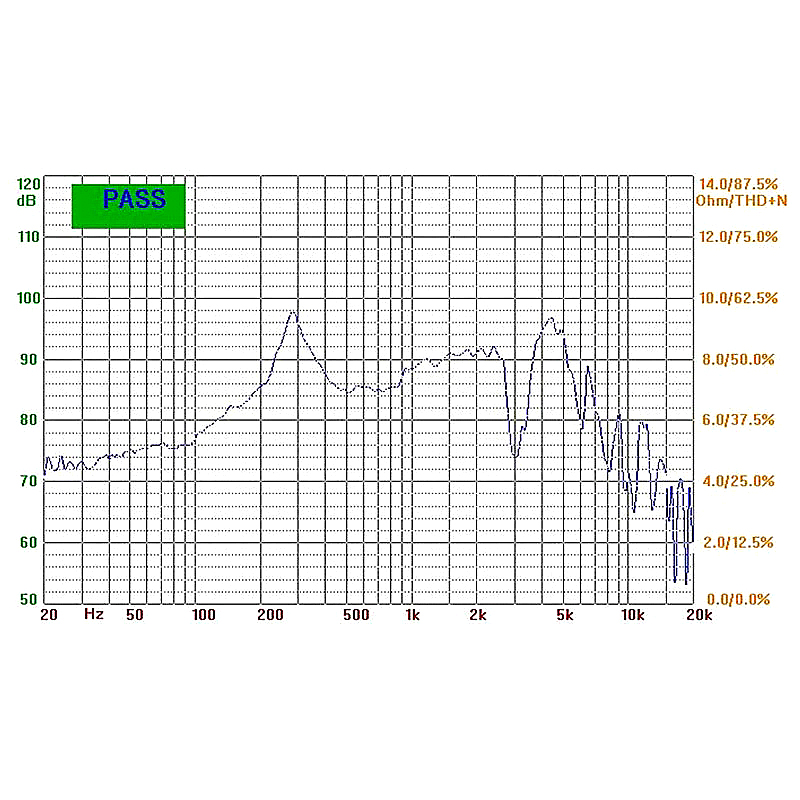

Response:Fo~7KHZ
S.P.L:87±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ32*18*6mm
Net weight:57g±8%
