Car Speaker

Loudspeaker YD140-1-4F60U 140mm 5.5 inch 4ohm 15W Car Speaker Drivers surround sound Used for Audio System Car Door Speaker High end Speaker Manufacturer

  • ModelYD140-1-4F60UDiameter: 140mmCone Material: PaperEdge: FoamNominal Power: 15WMaximum Power: 20WImpedance: 415%ΩFo: 13520%HzResponse: Fo-10kHzS.P.L: 883dB/W/MMagnet Size: Φ60Φ3210Net weight:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD140-1-4F60U
  • Diameter: 140mm
  • Description
  • Order

Product Description

YD140-1-4F60U-Model


ModelYD140-1-4F60U
Diameter: 140mm
Cone Material: Paper
Edge: Foam
Nominal Power: 15W
Maximum Power: 20W
Impedance:  4±15%Ω
Fo: 135±20%Hz
Response: Fo-10kHz
S.P.L: 88±3dB/W/M

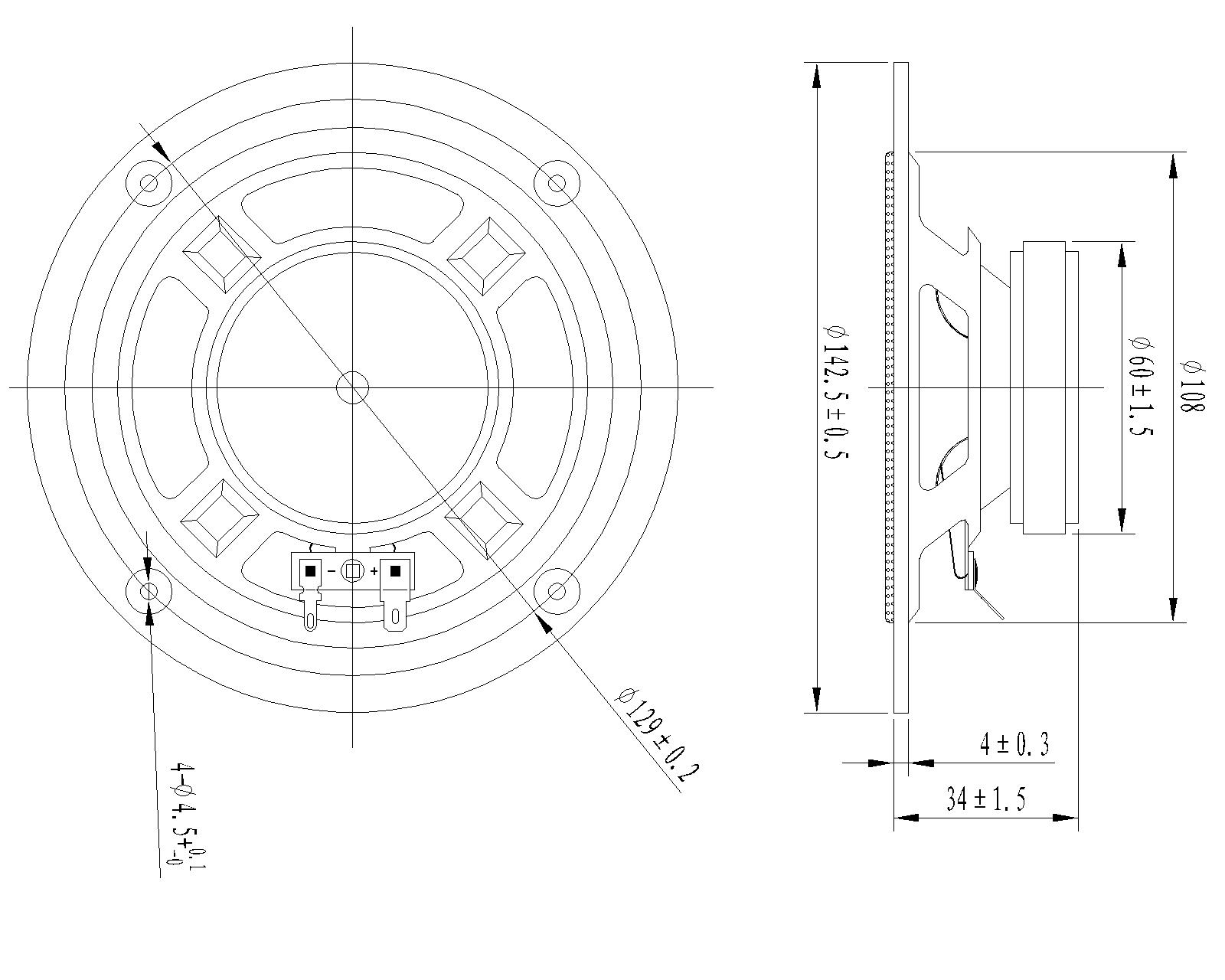

Magnet Size: Φ60×Φ32×10
Net weight:

YD140-1-4F60U-Q
