Car Speaker

Loudspeaker YD135-102-4F60U 130mm 5" 4ohm 15W Car Speaker Drivers surround sound Used for Audio System Car Door Speaker High end Speaker Manufacturer

  • ModelYD135-102-4F60UDiameter: 130mmCone Material: PaperEdge: FoamNominal Power: 15WMaximum Power: 40WImpedance: 415%ΩFo: 11020%HzResponse: Fo-15kHzS.P.L: 883dB/W/MMagnet Size: Φ60Φ328Net weight:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD135-102-4F60U
  • Diameter: 130mm
  • Description
  • Order

Product Description

YD135-102-4F60U-Model


ModelYD135-102-4F60U
Diameter: 130mm
Cone Material: Paper
Edge: Foam
Nominal Power: 15W
Maximum Power: 40W
Impedance:  4±15%Ω
Fo: 110±20%Hz

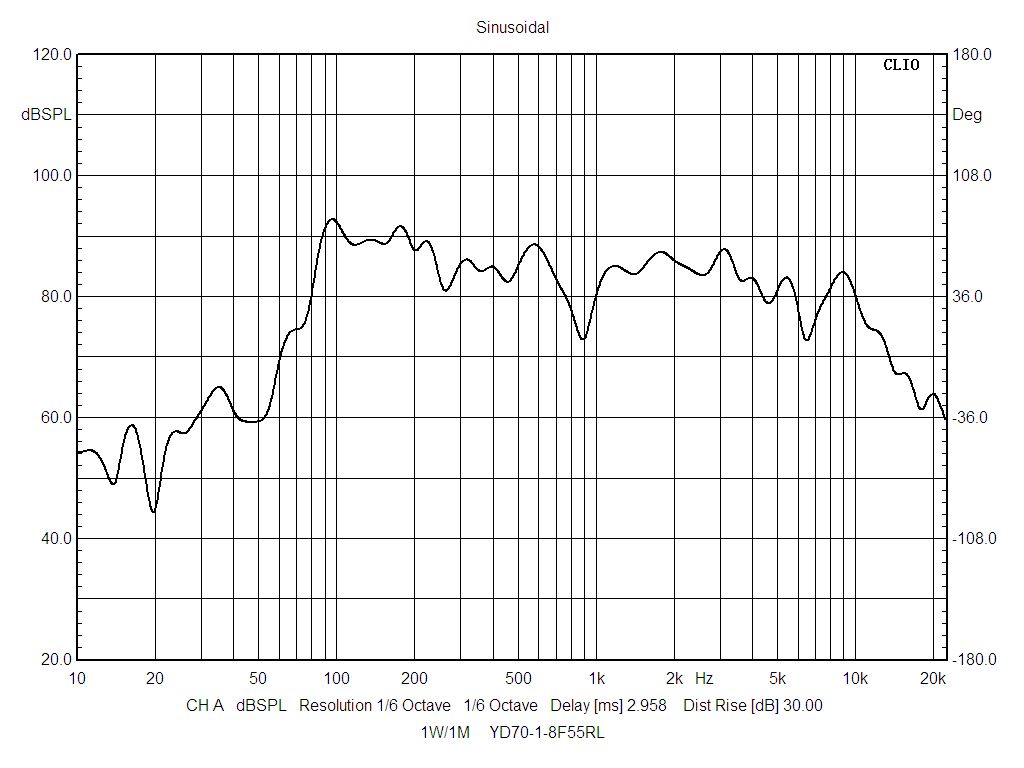

Response: Fo-15kHz
S.P.L: 88±3dB/W/M

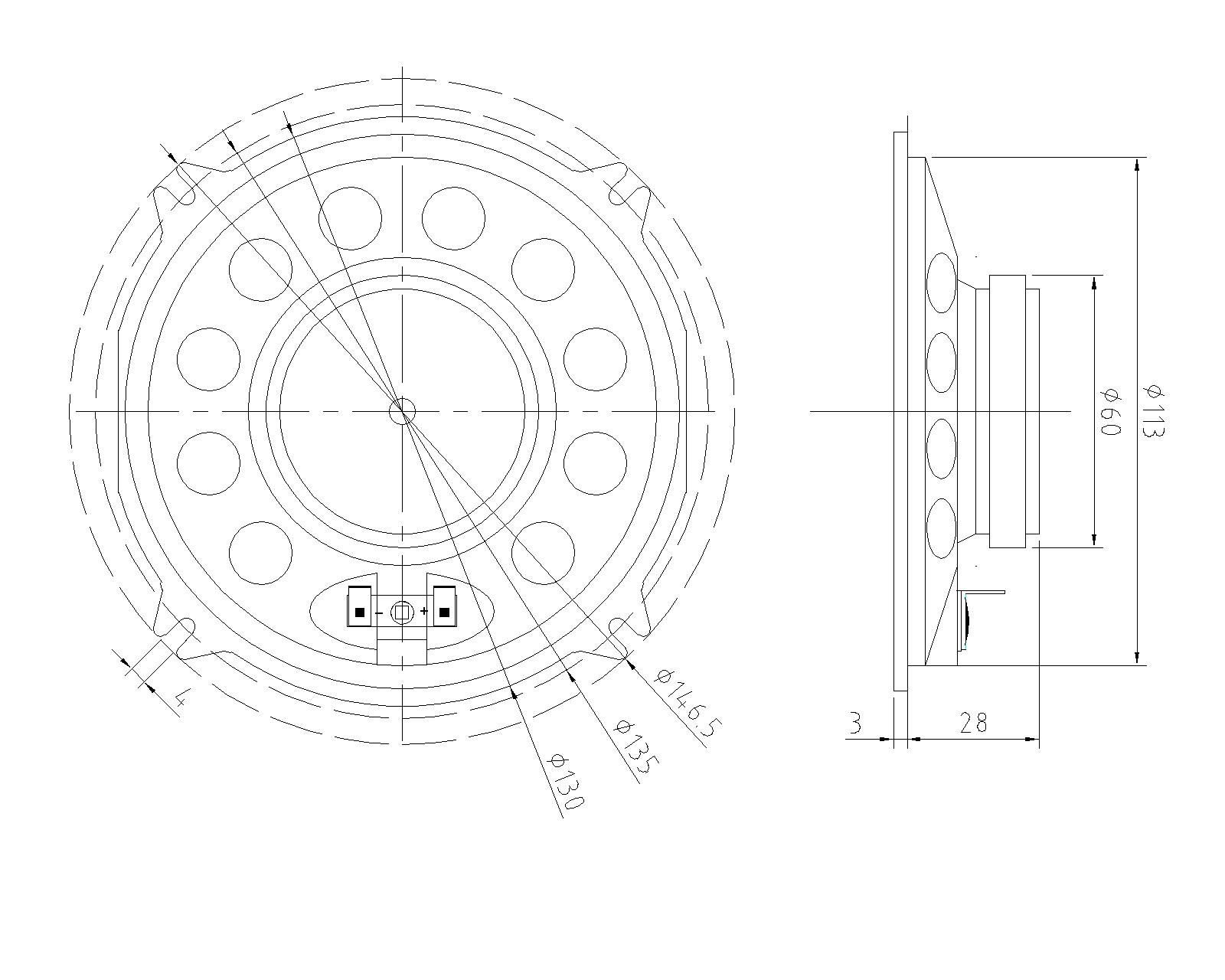

Magnet Size: Φ60×Φ32×8
Net weight:

YD135-102-4F60U-Q
