Loudspeaker YD131-12-4F70U2W 130mm 5" 4/8ohm 15W Car Speaker Drivers Used for Audio System Car Door Speaker Good Quality Cheap Price Speaker Manufacturer

  • Model：YD131-12-4F70U2WDiameter: 131x131Cone Material: PaperEdge: FoamNominal Power: 15WMaximum Power: 30WImpedance: 415%ΩFo: 11020%HzResponse: Fo-15kHzS.P.L: 883dB/W/MMagnet Size: Φ70Φ3210Net weight:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD131-12-4F70U2W
  • Diameter: 131x131
  • Description
  • Order

Product Description

YD131-12-4F70u-Model


Model：YD131-12-4F70U2W
Diameter: 131x131
Cone Material: Paper
Edge: Foam
Nominal Power: 15W
Maximum Power: 30W
Impedance:  4±15%Ω
Fo: 110±20%Hz

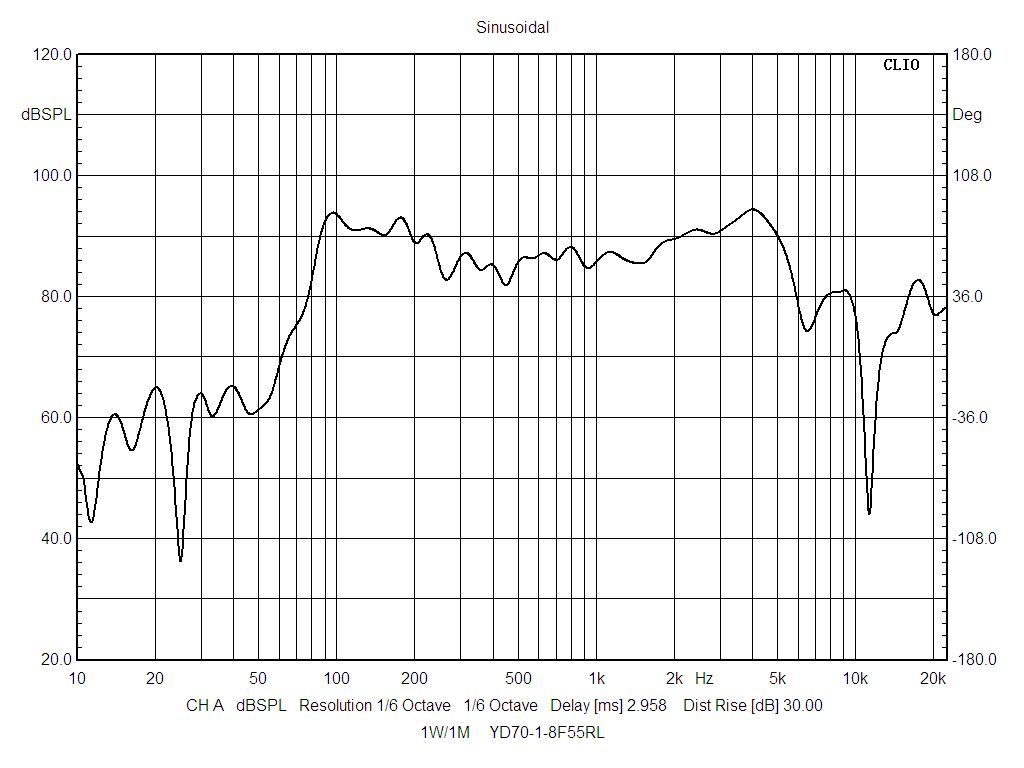

Response: Fo-15kHz
S.P.L: 88±3dB/W/M

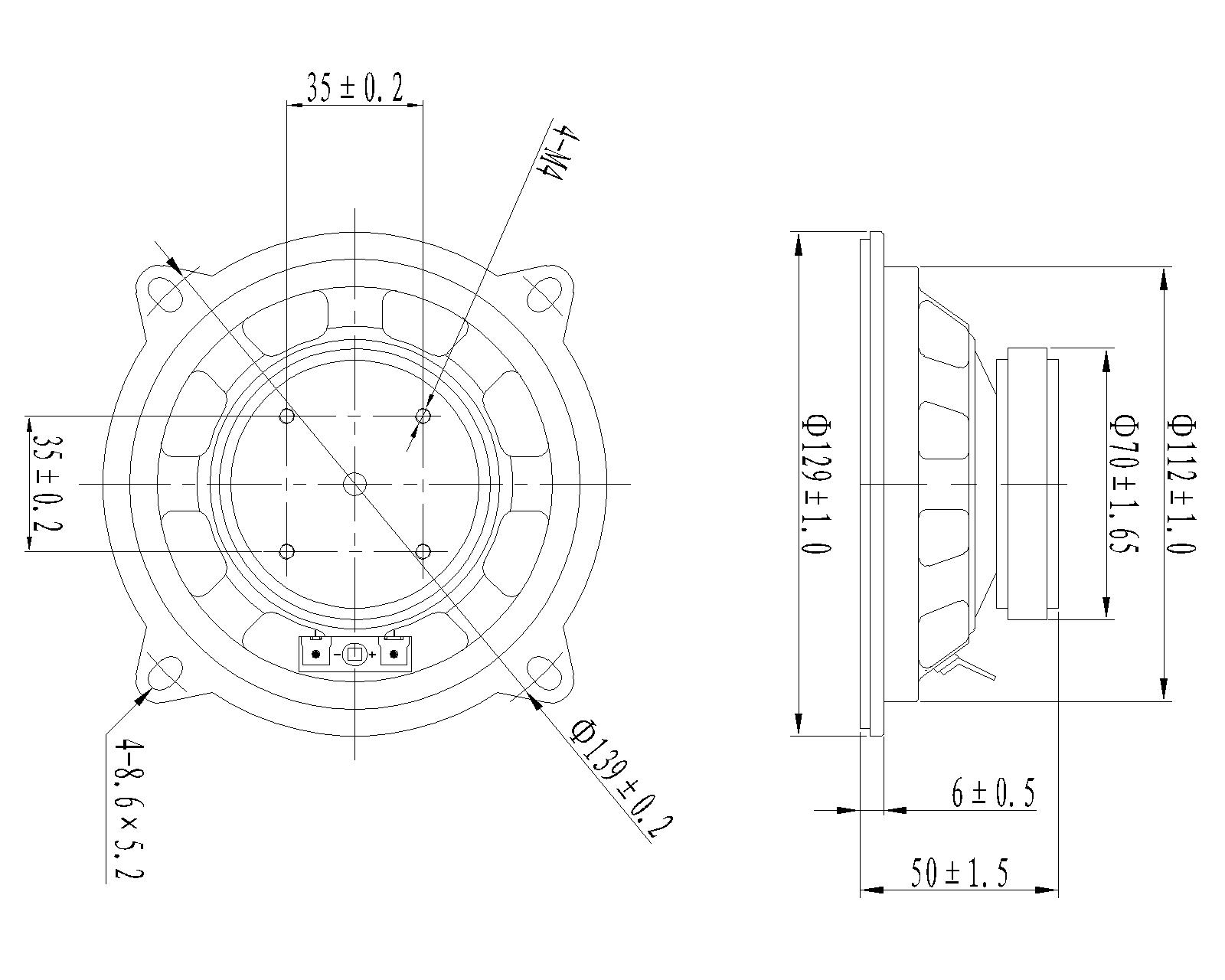

Magnet Size: Φ70×Φ32×10
Net weight:

YD131-12-4F70U2W(Nissan)-Q
