Medical Equipment Speaker

Loudspeaker 77mm YD77-38-4N12.5P-R Min Full Range Equipment Speaker Drivers

  • Loudspeaker 77mm YD77-38-4N12.5P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co LtdModelYD77-38-4N12.5P-RDimension:Φ77*77*22H mmCone Material:PaperEdge:PaperNominal Power:3WMaximum P

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD77-38-4N12.5P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 77mm YD77-38-4N12.5P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD77-38-4N12.5P-R

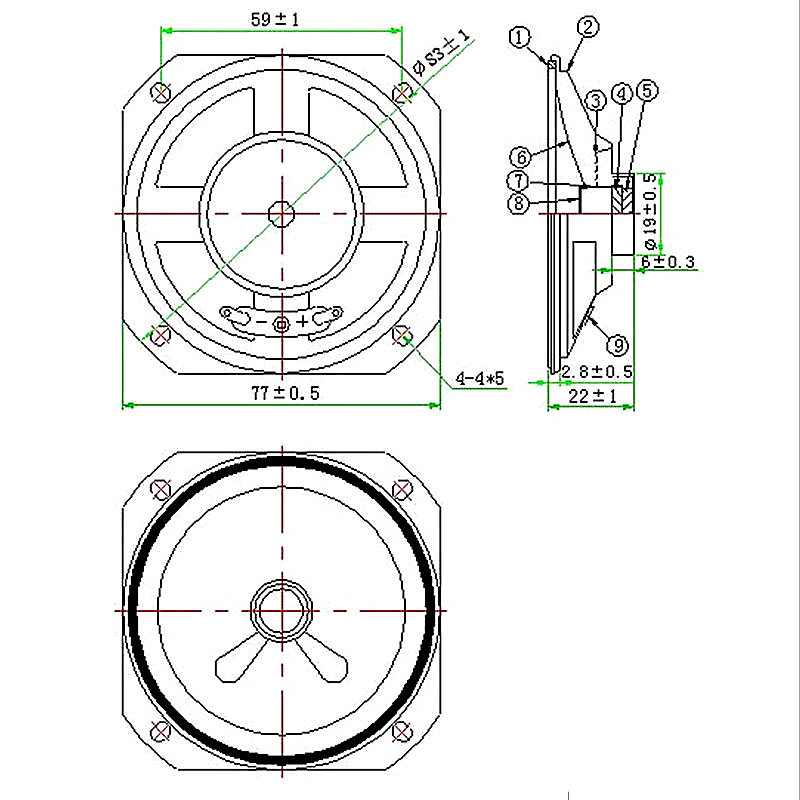

Dimension:Φ77*77*22H mm
Cone Material:Paper
Edge:Paper
Nominal Power:3W
Maximum Power:4W
Impedance:4Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:300±20%

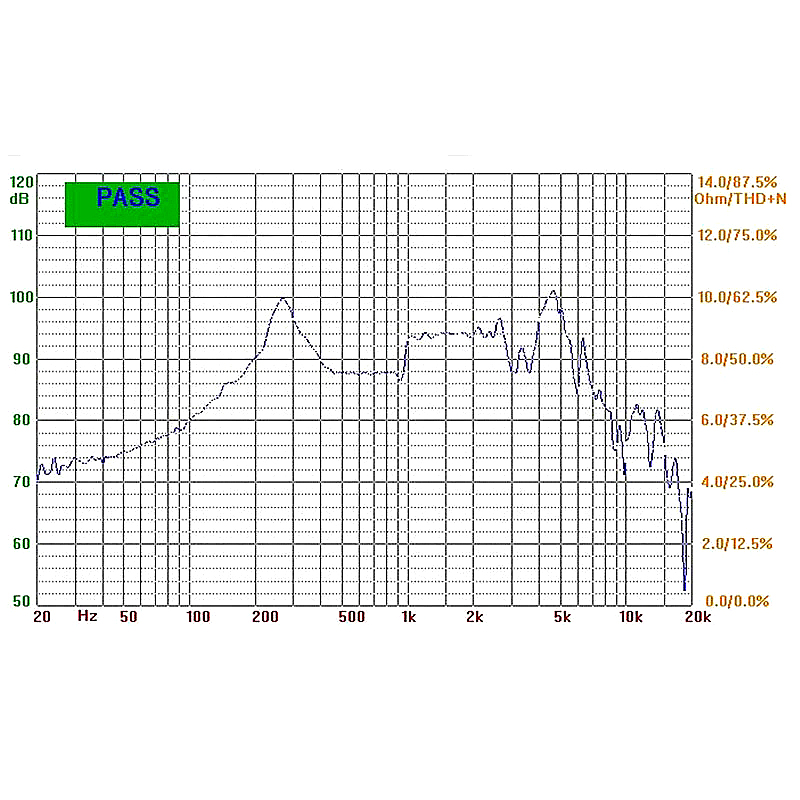

Response:Fo300~6KHZ
S.P.L:90±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2.0mm
Net weight:33g±8%
