Loudspeaker 40mm YD40-20-32N12.5P-R Min Full Range Telephone Speaker Drivers

  • Loudspeaker 40mm YD40-20-32N12.5P-R Min Full Range Telephone Speaker Drivers-Changzhou Esuntech Co LtdModelYD40-20-32N12.5P-RDimension:Φ40*10H mmCone Material:PaperEdge:PaperNominal Power:0.5WMaximum

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD40-20-32N12.5P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 40mm YD40-20-32N12.5P-R Min Full Range Telephone Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD40-20-32N12.5P-R

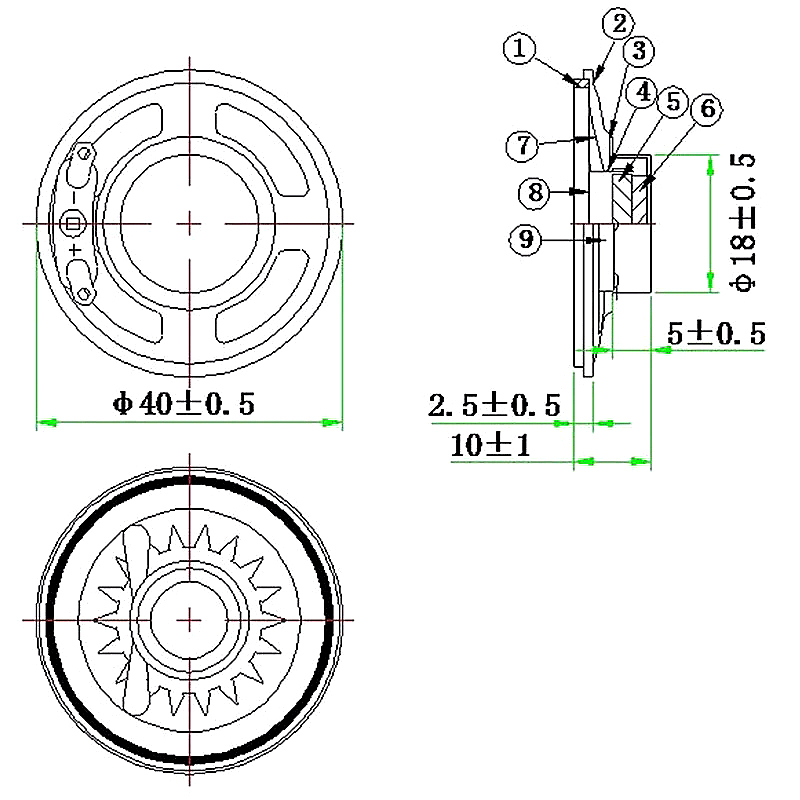

Dimension:Φ40*10H mm
Cone Material:Paper
Edge:Paper
Nominal Power:0.5W
Maximum Power:1W
Impedance:32±15%Ω
Voice coil:Φ13.28mm  PL+Cu
Fo:820±20%Hz

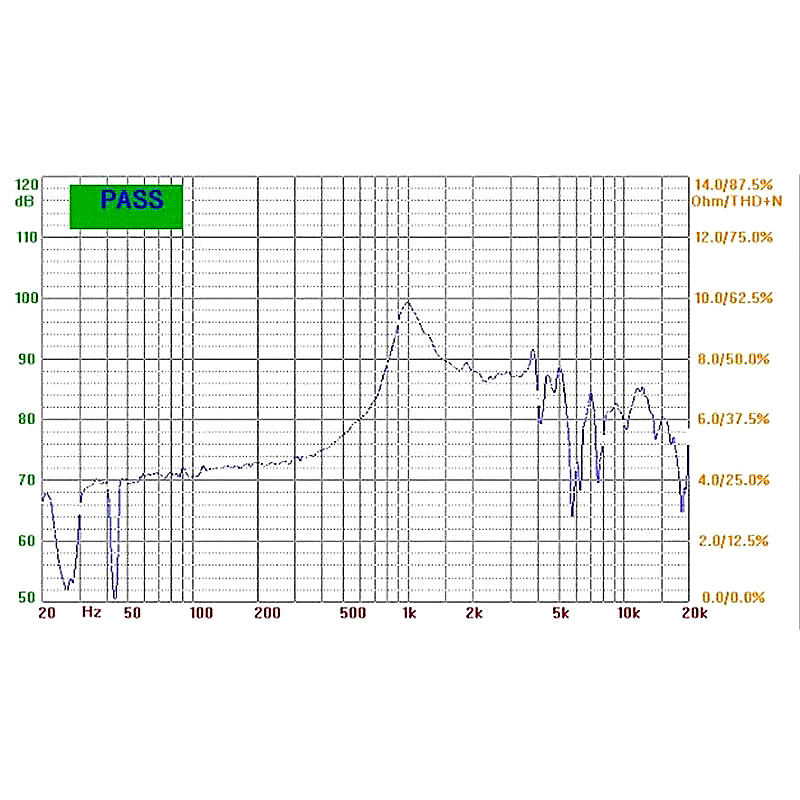

Response:Fo~5KHZ
S.P.L:93±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2.0mm
Net weight:13g±8%
