Loudspeaker

Loudspeaker 40mm YD40-19-4N32P-R Min Full Range Multimedia Speaker Drivers

  • Loudspeaker 40mm YD40-19-4N32P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co LtdModelYD40-19-4N32P-RDimension:Φ40*22H mmCone Material:PaperEdge:PUNominal Power:5WMaximum Power:6WIm

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD40-19-4N32P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 40mm YD40-19-4N32P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd







ModelYD40-19-4N32P-R

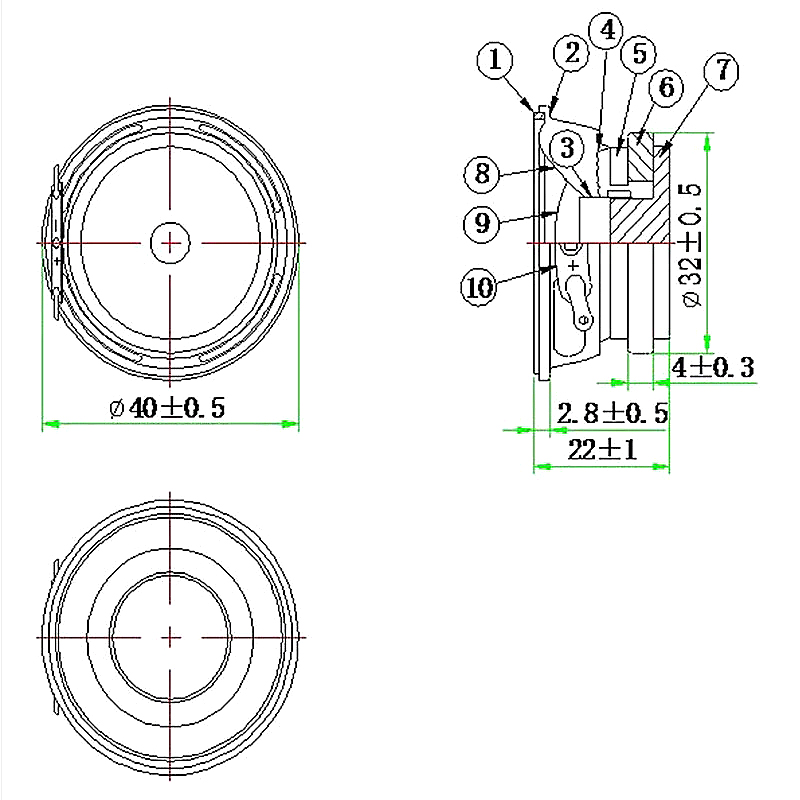

Dimension:Φ40*22H mm
Cone Material:Paper
Edge:PU
Nominal Power:5W
Maximum Power:6W
Impedance:4±15%Ω
Voice coil:Φ13.28mm KSV+Cu
Fo:230±20%Hz

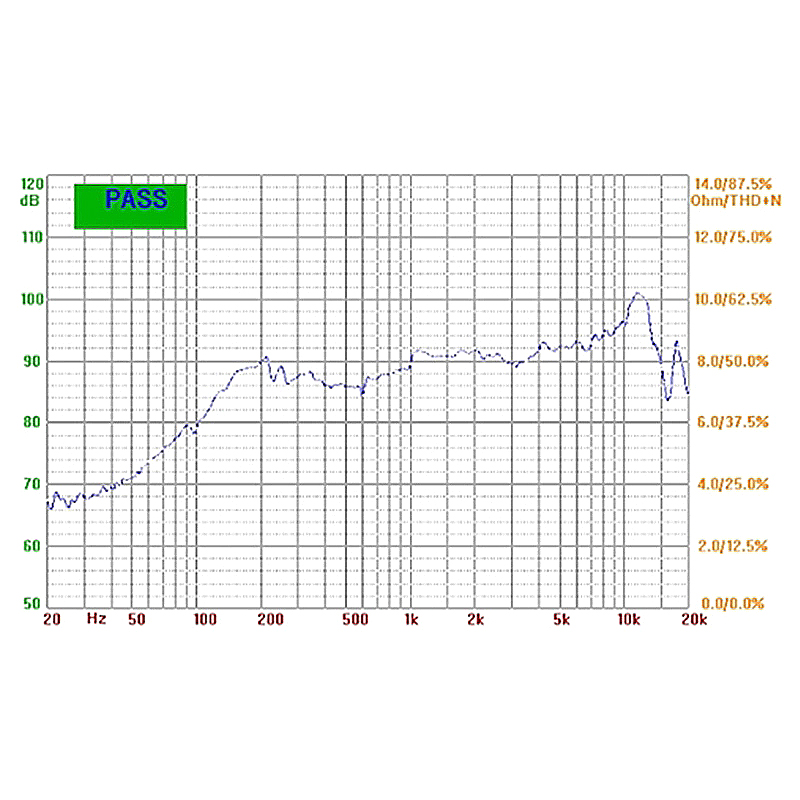

Response:Fo230~20KHZ
S.P.L:91±3dB(AT 0.1W/0.1M,Average of  0.6,0.8,1.0,1.2  KHz)
Magnet Size:Φ32*18*4mm
Net weight:53g±8%
