Product Description

Loudspeaker 50mm YD50-46-8F40P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD50-46-8F40P-R

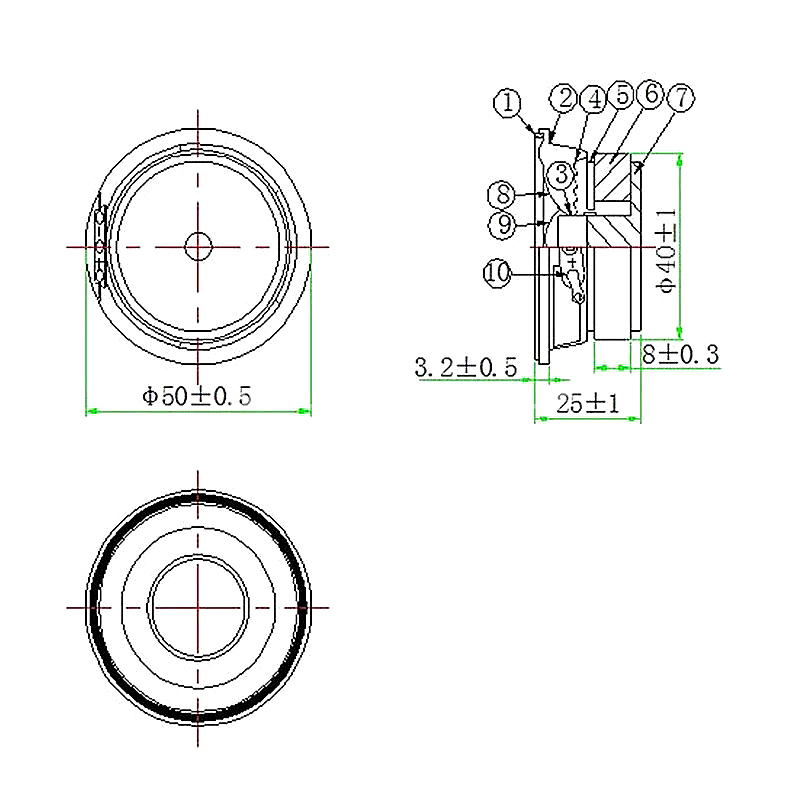

Dimension:Φ50*25H mm
Cone Material:Paper
Edge:Foam
Nominal Power:4W
Maximum Power:5W
Impedance:8±15%Ω
Voice coil:Φ13.28mm KSV+Cu
Fo:220±20%Hz
Response:Fo~20KHZ
S.P.L:90±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ40*19*8mm
Net weight:90g±8%
