Product Description

Loudspeaker 102mm YD102-25-4F45P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD102-25-4F45P-R

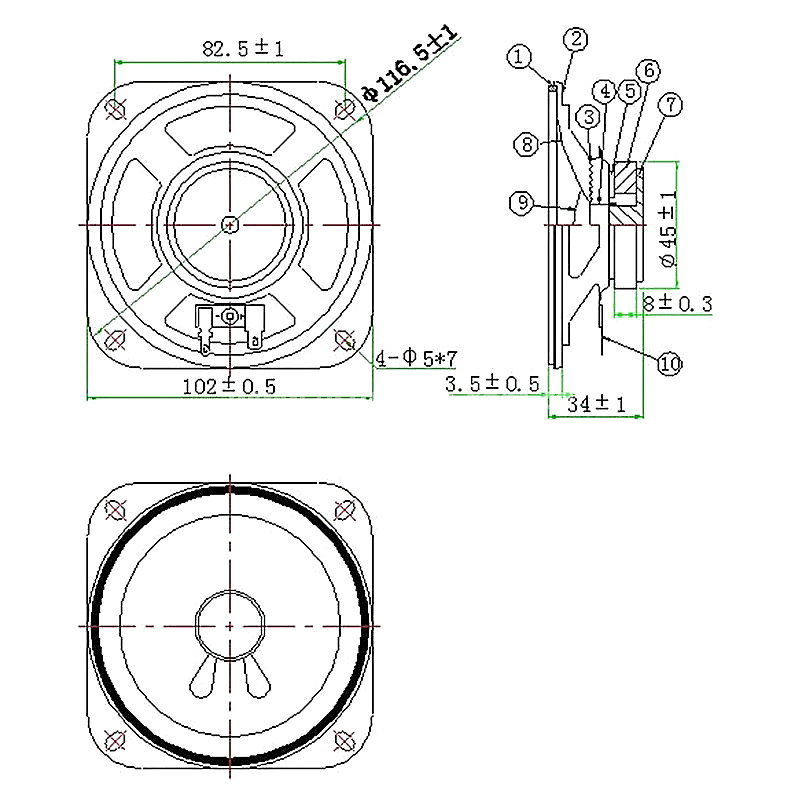

Dimension:102*102*34H mm
Cone Material:Paper
Edge:Paper
Nominal Power:5W
Maximum Power:10W
Impedance:4Ω±15%Ω
Voice coil:Φ14.28mm ASV+Cu
Fo:160±20%
Response:Fo~10KHZ
S.P.L:90±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ45*22*8mm
Net weight:130g±8%
