Car Speaker

Loudspeaker YD130-3-4F50U 131mm 5" 4/8ohm 20W Car Speaker drivers Used for Audio System car door speaker good quality cheap price speaker manufacturer

  • Model：YD130-3-4F50UDiameter: 131Cone Material: PaperEdge: FoamNominal Power: 20WMaximum Power: 40WImpedance: 415%ΩFo: 9020%HzResponse: Fo-20kHzS.P.L: 883dB/W/MMagnet Size: Φ70Φ3210Net weight:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD130-3-4F50U
  • Diameter: 131
  • Description
  • Order

Product Description

YD130-3-4F50U-Model


Model：YD130-3-4F50U
Diameter: 131
Cone Material: Paper
Edge: Foam
Nominal Power: 20W
Maximum Power: 40W
Impedance:  4±15%Ω
Fo: 90±20%Hz

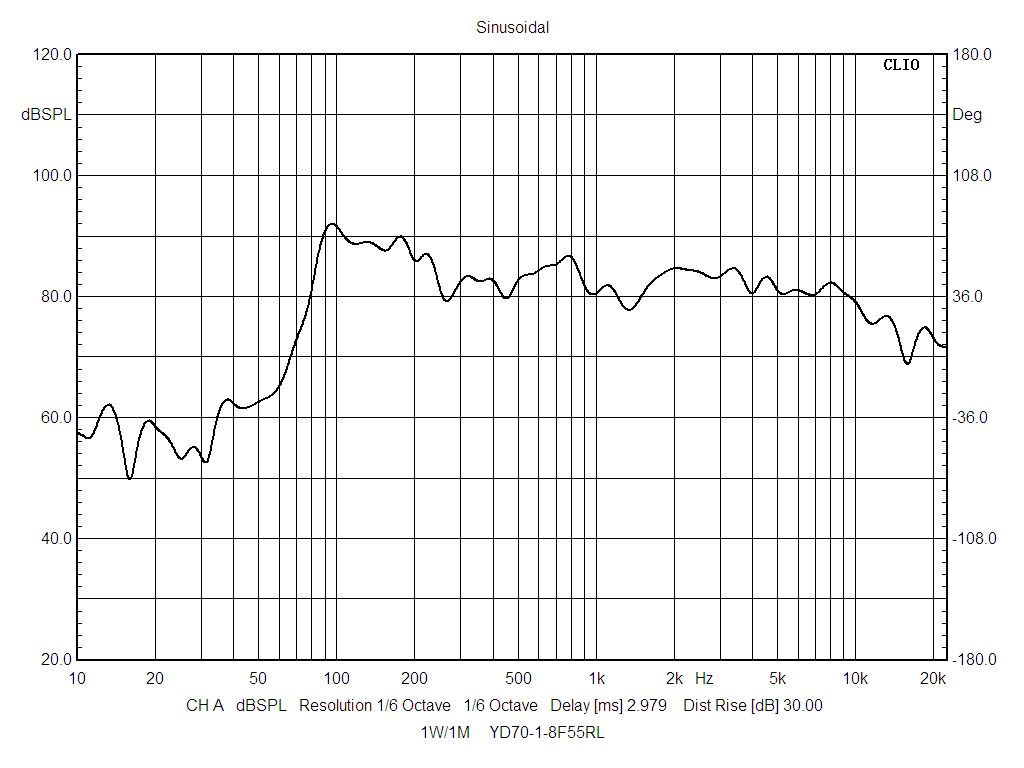

Response: Fo-20kHz
S.P.L: 88±3dB/W/M

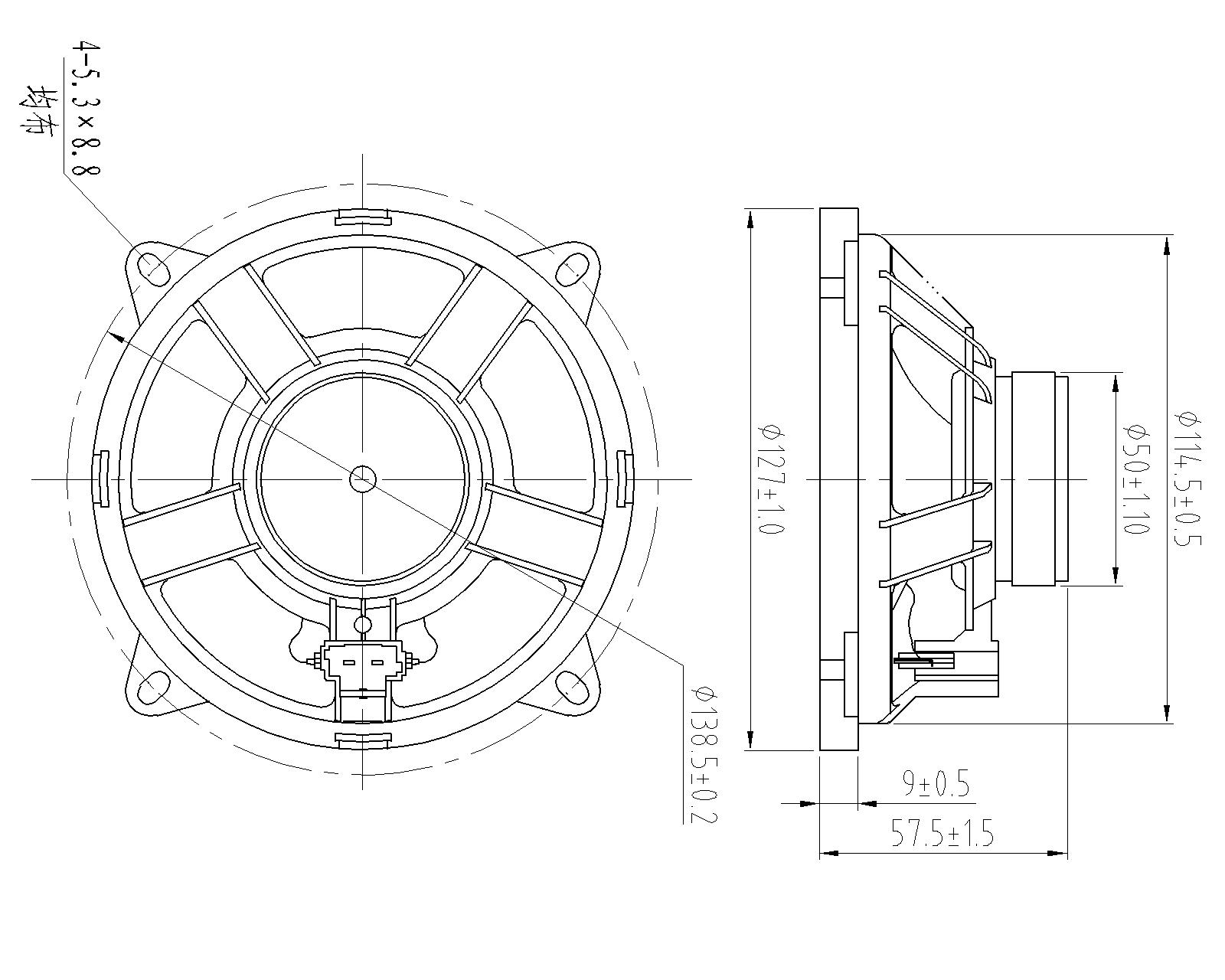

Magnet Size: Φ70×Φ32×10
Net weight:

YD130-3-4F50U(Xantia5寸)-Q
