Loudspeaker

Loudspeaker 40mm YD40-18-8F40P-R Min Full Range Multimedia Speaker Drivers

  • Loudspeaker 40mm YD40-18-8F40P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co LtdModelYD40-18-8F40P-RDimension:Φ40*22H mmCone Material:PaperEdge:PUNominal Power:3WMaximum Power:4WIm

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD40-18-8F40P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 40mm YD40-18-8F40P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD40-18-8F40P-R

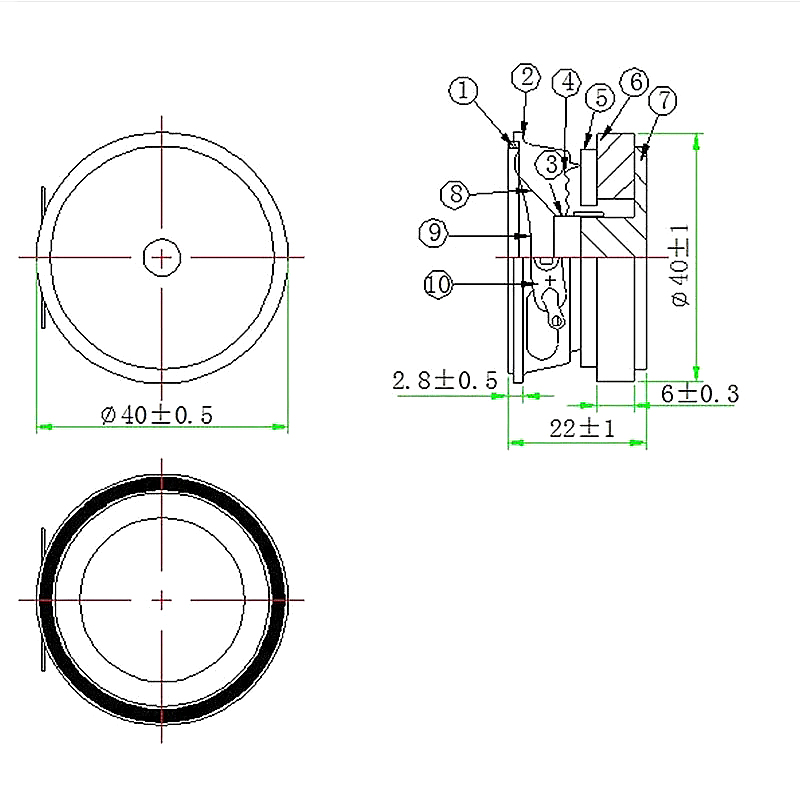

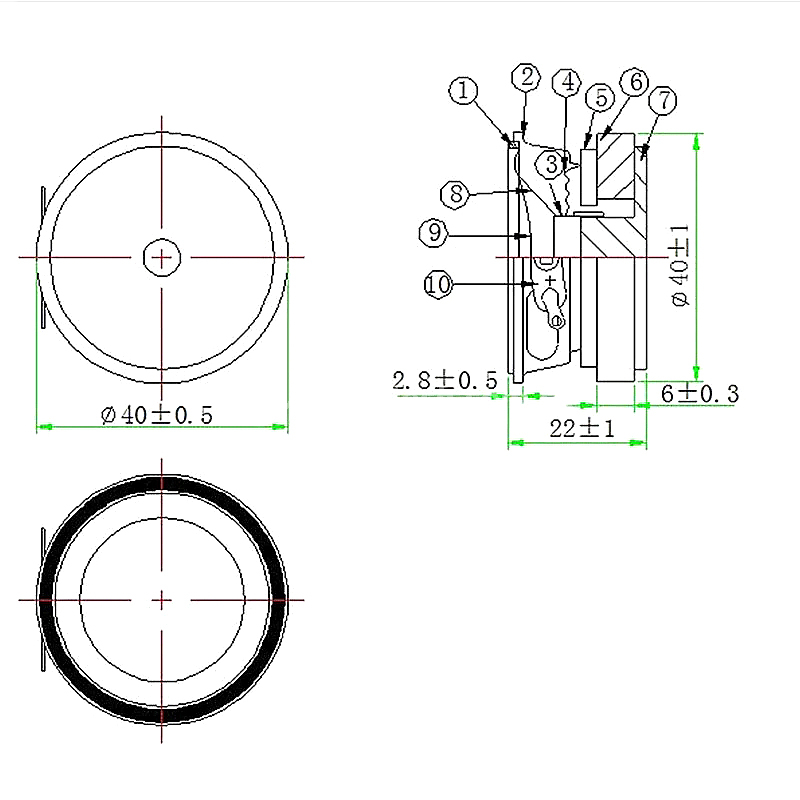

Dimension:Φ40*22H mm
Cone Material:Paper
Edge:PU
Nominal Power:3W
Maximum Power:4W
Impedance:8±15%Ω
Voice coil:Φ13.28mm PSV+Cu
Fo:250±20%Hz
Response:Fo~20KHZ
S.P.L:87±3dB(AT 0.1W/0.1M,Average of  0.6,0.8,1.0,1.2  KHz)
Magnet Size:Φ40*19*6mm
Net weight:73g±8%
