Loudspeaker

Loudspeaker 50mm YD50-47-4F45P-R Min Full Range Multimedia Speaker Drivers

  • Loudspeaker 50mm YD50-47-4F45P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co LtdModelYD50-47-4F45P-RDimension:50*25.5H mmCone Material:PaperEdge:FoamNominal Power:3WMaximum Power:5

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-47-4F45P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 50mm YD50-47-4F45P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD50-47-4F45P-R

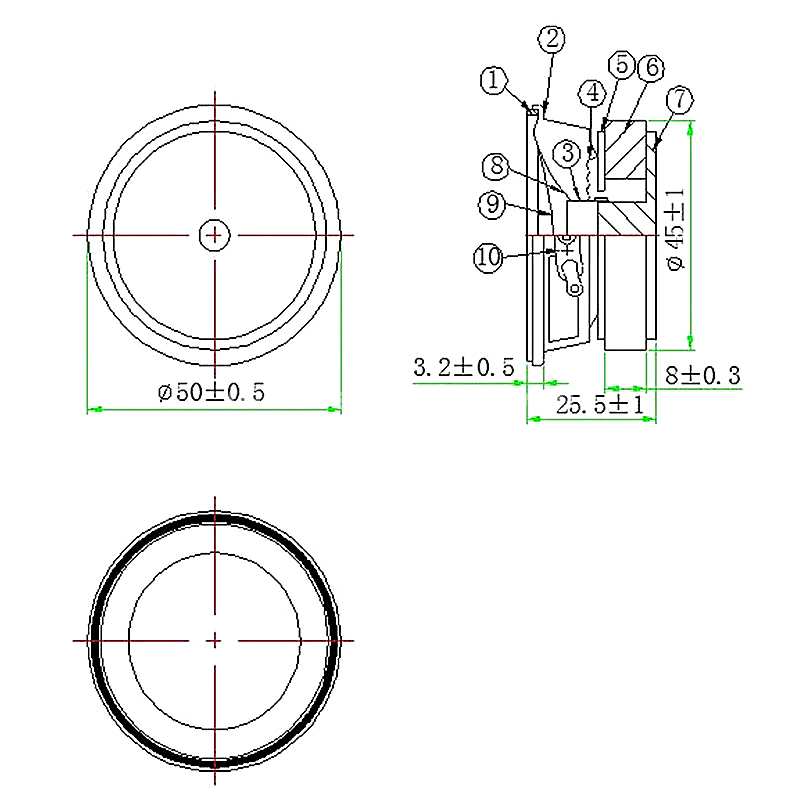

Dimension:50*25.5H mm
Cone Material:Paper
Edge:Foam
Nominal Power:3W
Maximum Power:5W
Impedance:4±15%Ω
Voice coil:Φ13.28mm KSV+Cu
Fo:190±20%Hz
Response:Fo~18KHZ
S.P.L:87±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ45*22*8mm
Net weight:102g±8%
