Car Speaker

Loudspeaker 129mm YD129-01-4F70P-R Min Full Range car Speaker Drivers

  • Loudspeaker 129mm YD129-01-4F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD129-01-4F70P-RDimension:Φ129*55H mmCone Material:InjectionEdge:RubberNominal Power:10WMaximum Powe

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD129-01-4F70P-R
  • Diameter: Φ129*55H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 129mm YD129-01-4F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD129-01-4F70P-R

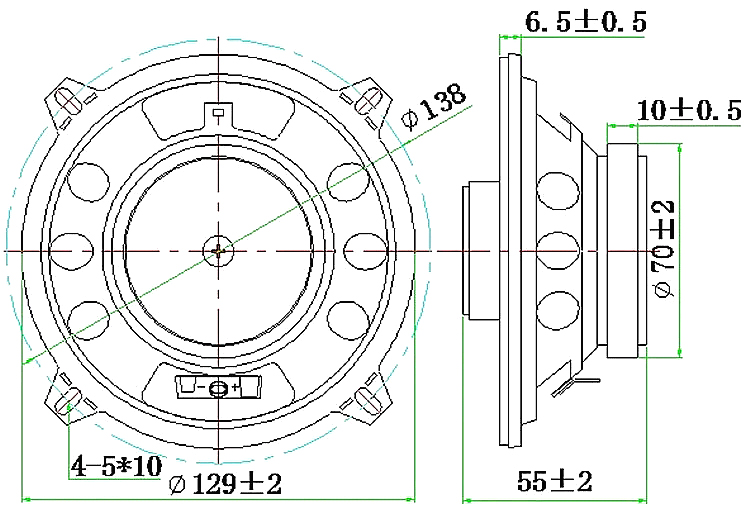

Dimension:Φ129*55H mm
Cone Material:Injection
Edge:Rubber
Nominal Power:10W
Maximum Power:20W
Impedance:4±15%Ω
Voice coil:Φ25.5mm  Aluminum
Fo:100±20%Hz

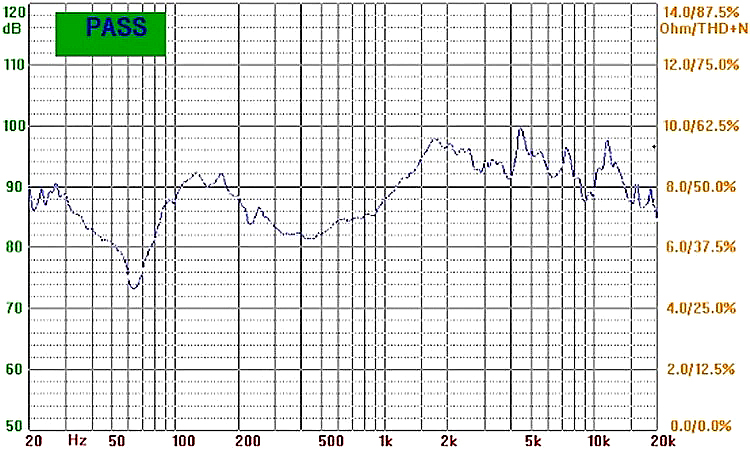

Response:Fo~20KHZ
S.P.L:88±3dB(at0.1W/0.1m, 0.5, 0.8, 1, 2 KHZ)
Magnet Size:Φ70*32*10mm
Net weight:430g±8%
