Product Description

Loudspeaker 102mm YD102-03-8F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD102-03-8F60P-R

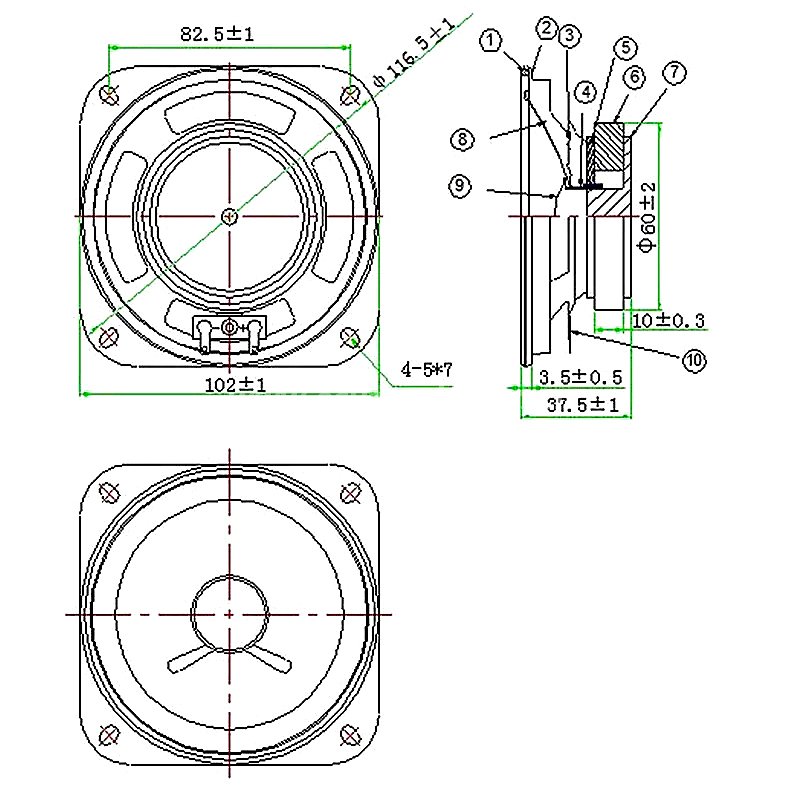

Dimension:102*102*37.5H mm
Cone Material:PP
Edge:Foam
Nominal Power:8W
Maximum Power:10W
Impedance:8±15%Ω
Voice coil:Φ19.45mm ASV+Cu
Fo:110±20%Hz

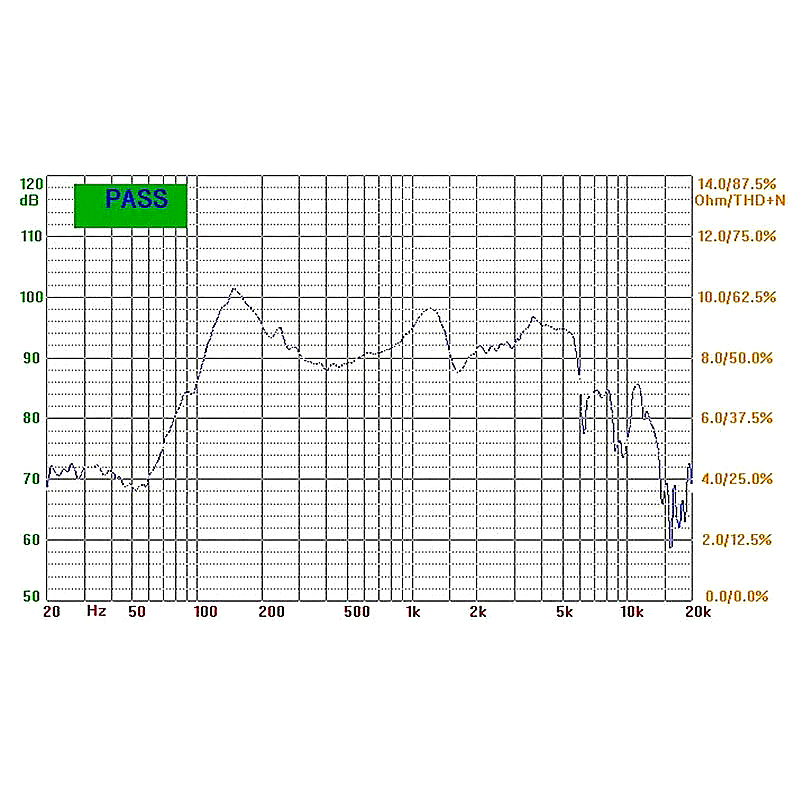

Response:Fo~6KHZ
S.P.L:94±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ60*32*10mm
Net weight:250g±8%
