Medical Equipment Speaker

Loudspeaker 50mm YD50-33-8F40P-R Min Full Range Equipment Speaker Drivers

  • Loudspeaker 50mm YD50-33-8F40P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co LtdModelYD50-33-8F40P-RDimension:Φ50*25H mmCone Material:PaperEdge:PaperNominal Power:4WMaximum Power:5W

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-33-8F40P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 50mm YD50-33-8F40P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD50-33-8F40P-R

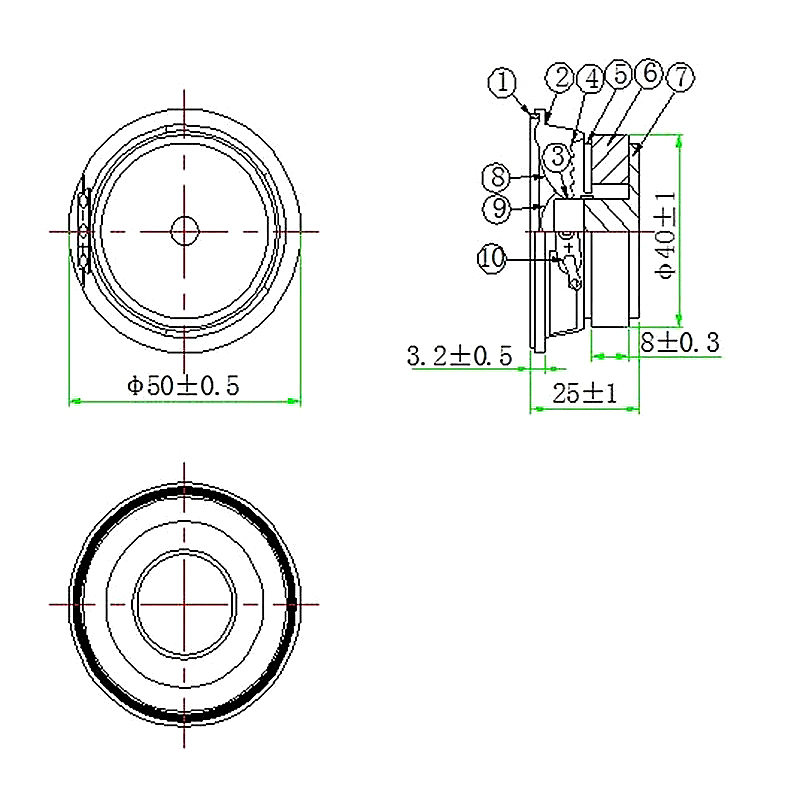

Dimension:Φ50*25H mm
Cone Material:Paper
Edge:Paper
Nominal Power:4W
Maximum Power:5W
Impedance:8Ω±15%Ω
Voice coil:Φ13.28mm KSV+Cu
Fo:600±20%

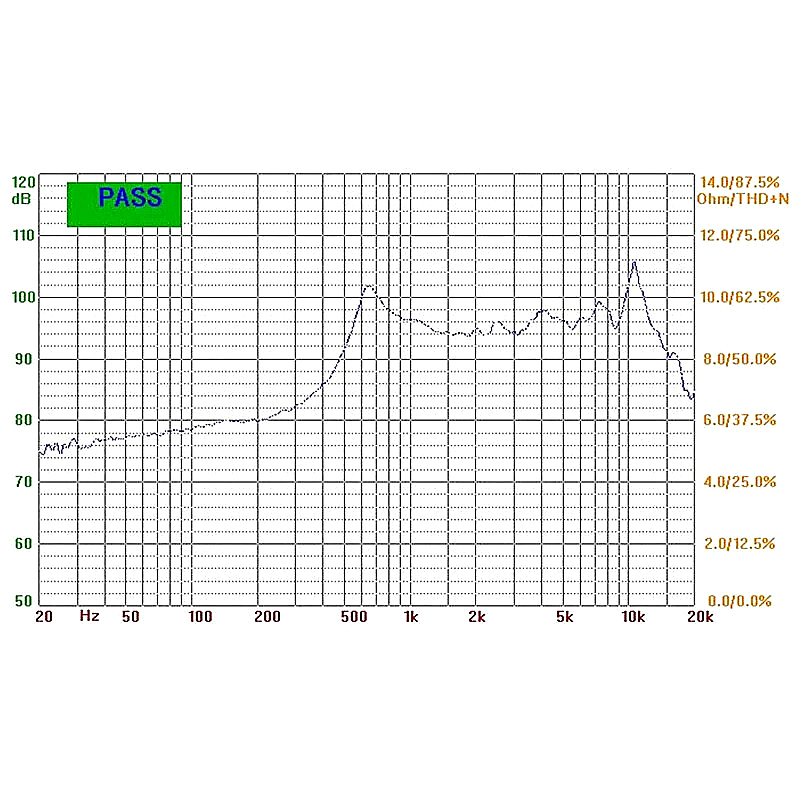

Response:Fo~15KHZ
S.P.L:95±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ40*19*8mm
Net weight:90g±8%
