Car Speaker

Loudspeaker YD120-3-4F70UL 140mm*140mm 5.5" Car Speaker drivers Used for Audio System car door speaker

  • ModelYD120-3-4F70ULDiameter: 140*140mmCone Material: PaperEdge: FoamNominal Power: 25WMaximum Power: 50WImpedance: 415%ΩFo: 12520%HzResponse: Fo-20kHzS.P.L: 893dB/W/MMagnet Size: Φ70Φ3210Net weight:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD120-3-4F70UL
  • Diameter: 140*140mm
  • Description
  • Order

Product Description


YD120-3-4F70UL-Model

ModelYD120-3-4F70UL

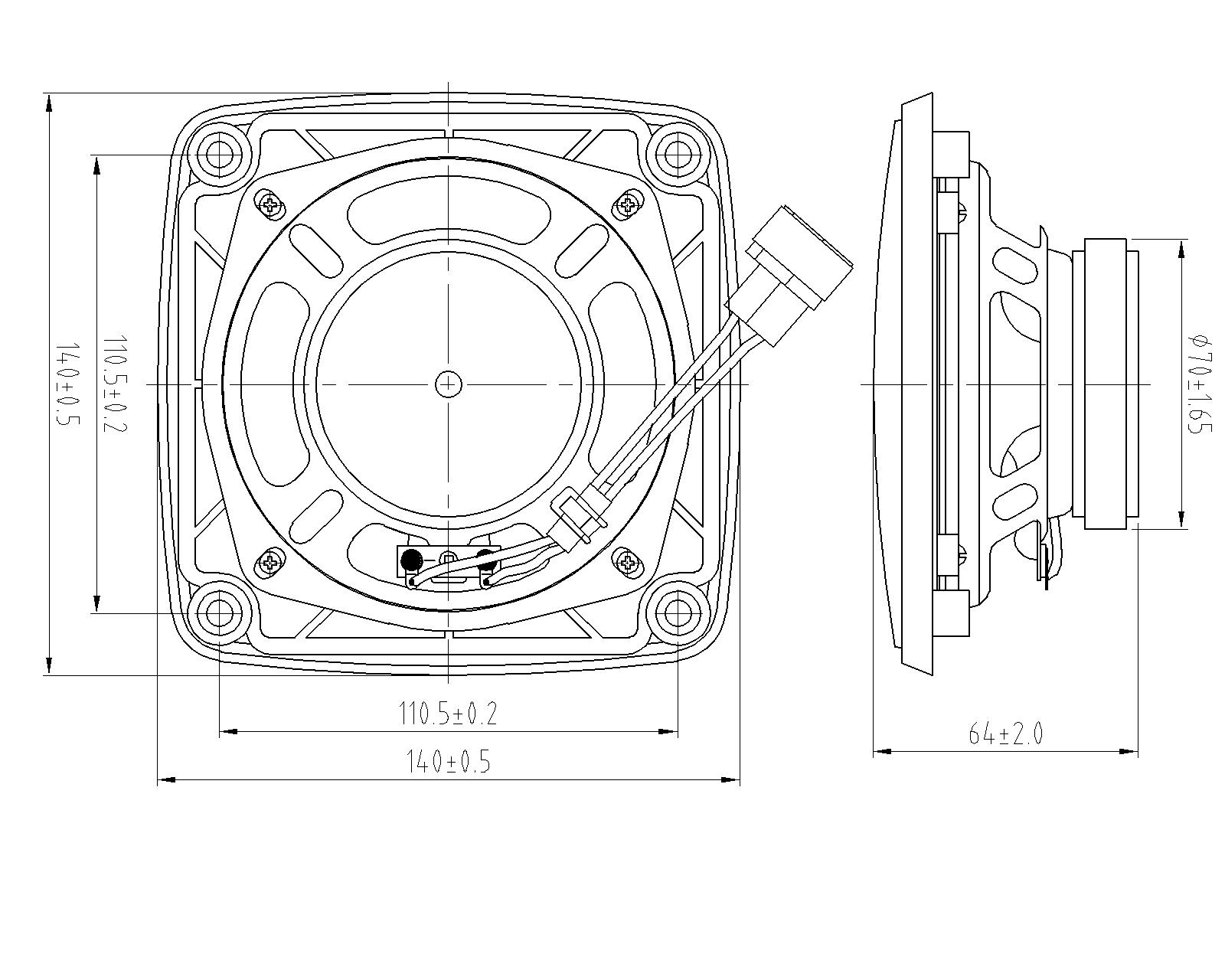

Diameter: 140*140mm
Cone Material: Paper
Edge: Foam
Nominal Power: 25W
Maximum Power: 50W
Impedance:  4±15%Ω
Fo: 125±20%Hz

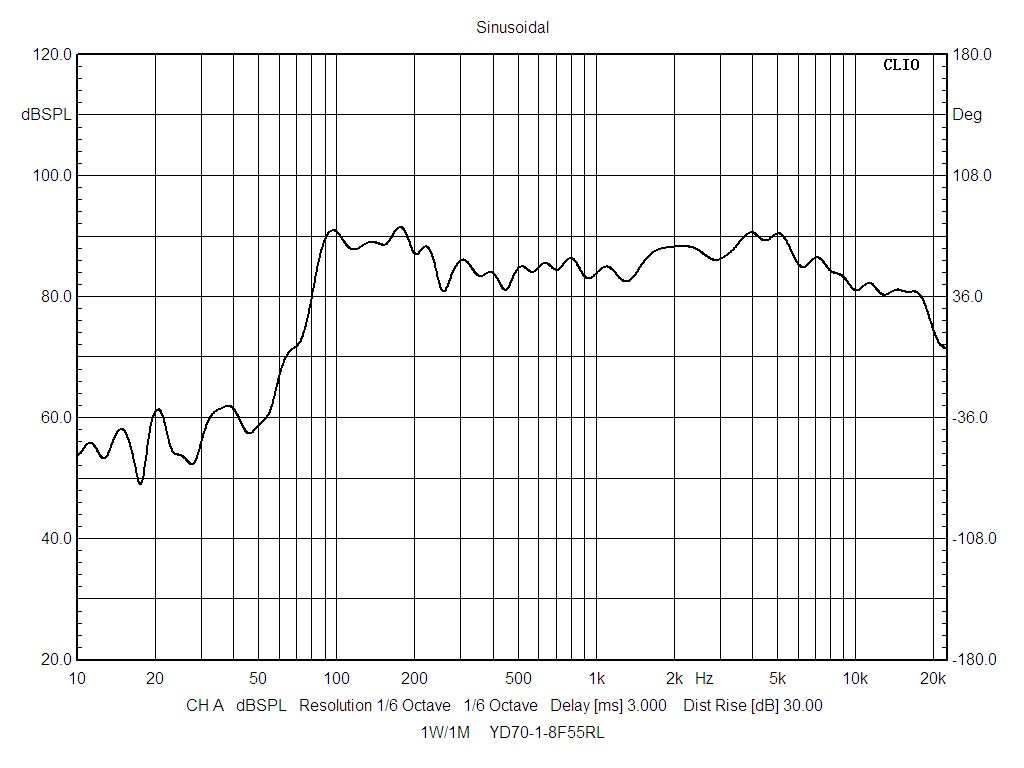

Response: Fo-20kHz
S.P.L: 89±3dB/W/M
Magnet Size: Φ70×Φ32×10
Net weight:

YD120-3-4F70UL-Q
