Car Speaker

Loudspeaker YD120-3-8F70M 120mm 5inch Full Range Paper Cone Speaker Drivers Waterproof Raw Speaker Unit

  • Model YD120-3-8F70MDiameter: 120mmCone Material:MylarEdge:MylarNominal Power:10wMaximum Power:20wImpedance:815%ΩVoice coil:Φ19.45mmFo:45020%HzResponse:Fo-6

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD120-3-8F70M
  • Diameter: 120mm
  • Description
  • Order

Product Description

                          Model                    YD120-3-8F70M

Diameter:

120mm

Cone Material:

Mylar

Edge:

Mylar

Nominal Power:

10w

Maximum Power:

20w

Impedance:

8±15%Ω

Voice coil:

Φ19.45mm

Fo:

450±20%Hz

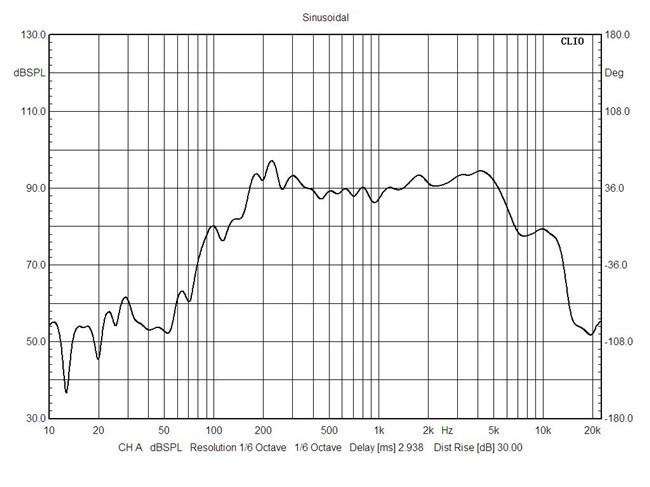

Response:

Fo-6.5kHz

S.P.L:

90±3dB/W/M

Magnet Size:

Φ70×32×10(Ferrite)

Net weight:

292g

3
