Car Speaker

Loudspeaker 120mm YD120-31-8F60P-R Min Full Range car Speaker Drivers

  • Loudspeaker 120mm YD120-31-8F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD120-31-8F60P-RDimension:120*120*38H mmCone Material:PaperEdge:FoamNominal Power:8WMaximum Power:10

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD120-31-8F60P-R
  • Diameter: 120*120*38H mm
  • Description
  • Order

Product Description

Loudspeaker 120mm YD120-31-8F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd







ModelYD120-31-8F60P-R

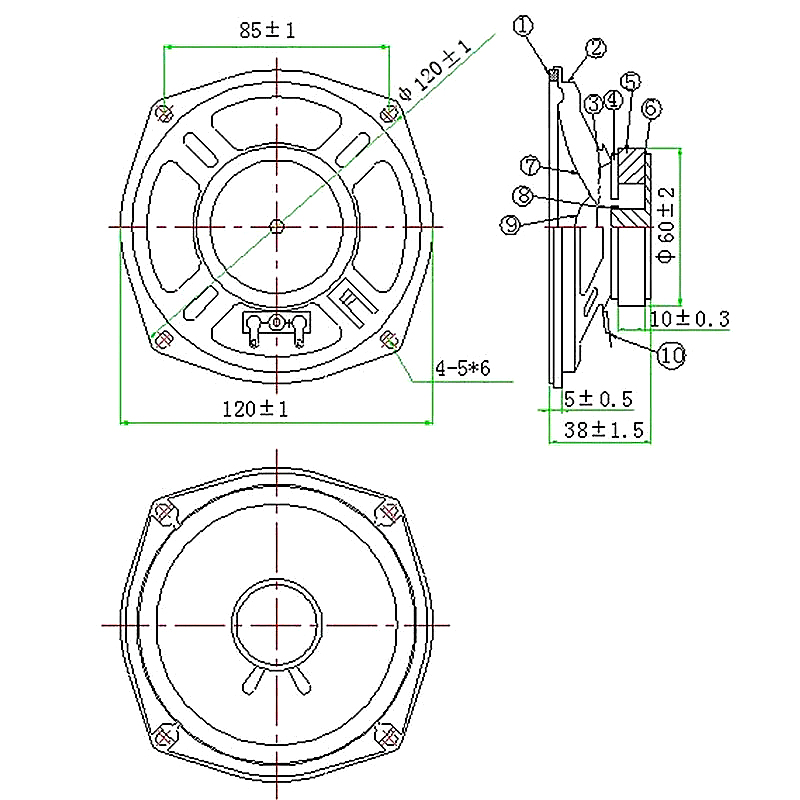

Dimension:120*120*38H mm
Cone Material:Paper
Edge:Foam
Nominal Power:8W
Maximum Power:10W
Impedance:8±15%Ω
Voice coil:Φ14.28mm ASV+Cu
Fo:120±20%Hz

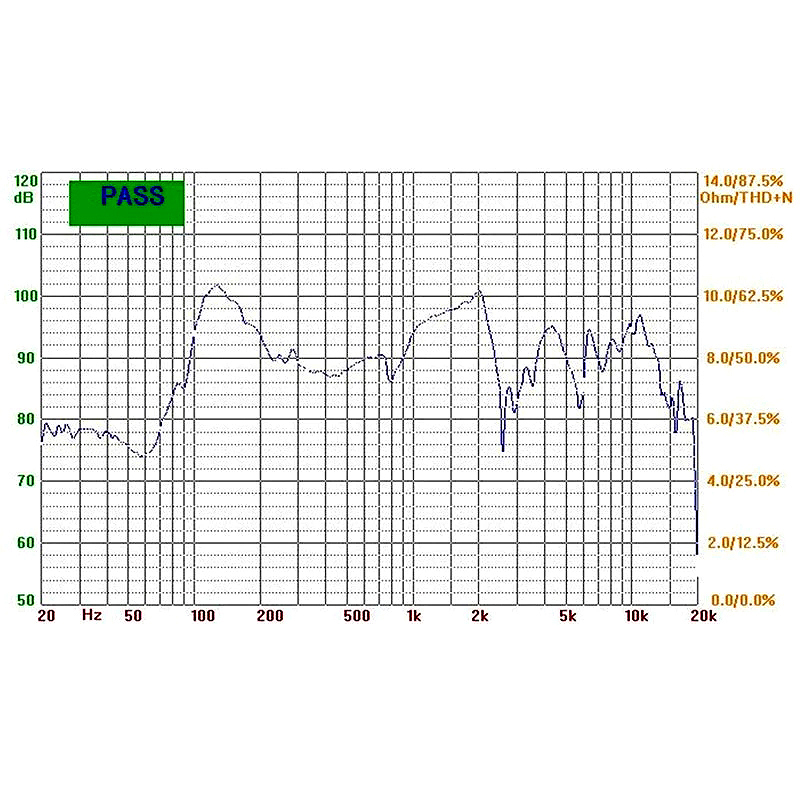

Response:Fo~15KHZ
S.P.L:92±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ60*32*10mm
Net weight:260g±8%
