Loudspeaker 102mm YD102-02-8F45P-R Min Full Range car Speaker Drivers

  • Loudspeaker 102mm YD102-02-8F45P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD102-02-8F45P-RDimension:102*102*36H mmCone Material:PaperEdge:FoamNominal Power:5WMaximum Power:6W

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD102-02-8F45P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 102mm YD102-02-8F45P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD102-02-8F45P-R

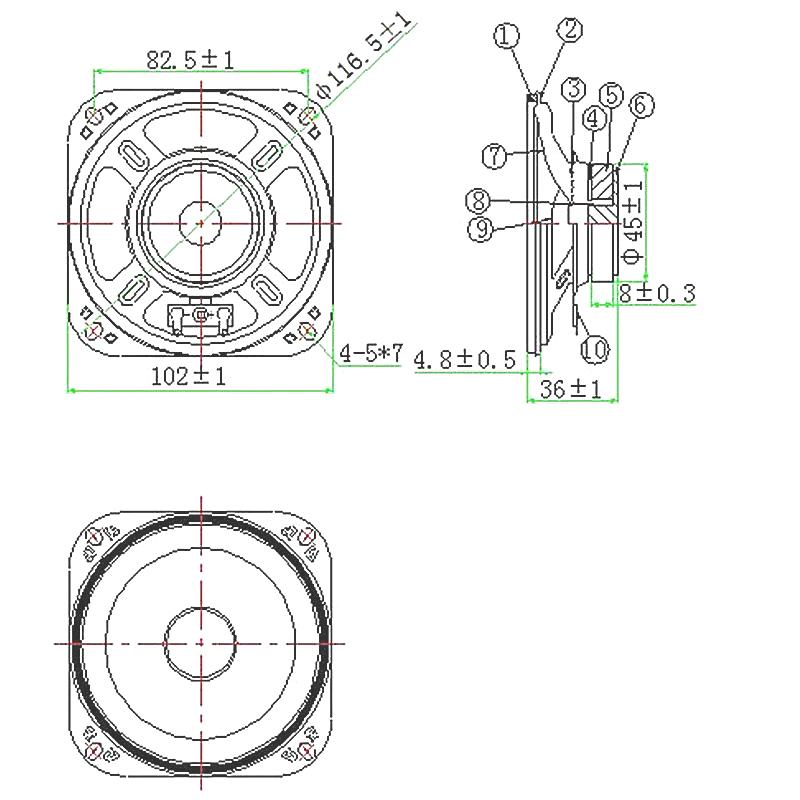

Dimension:102*102*36H mm
Cone Material:Paper
Edge:Foam
Nominal Power:5W
Maximum Power:6W
Impedance:8±15%Ω
Voice coil:Φ14.28mm KSV+Cu
Fo:150±20%Hz
Response:Fo~13KHZ
S.P.L:94±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ45*22*8mm
Net weight:130g±8%
