Car Speaker

Loudspeaker 118mm YD118-01-8F60P-R Min Full Range car Speaker Drivers

  • Loudspeaker 118mm YD118-01-8F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD118-01-8F60P-RDimension:118*118*44.5H mmCone Material:PaperEdge:PaperNominal Power:5WMaximum Power

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD118-01-8F60P-R
  • Diameter: 118*118*44.5H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 118mm YD118-01-8F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD118-01-8F60P-R

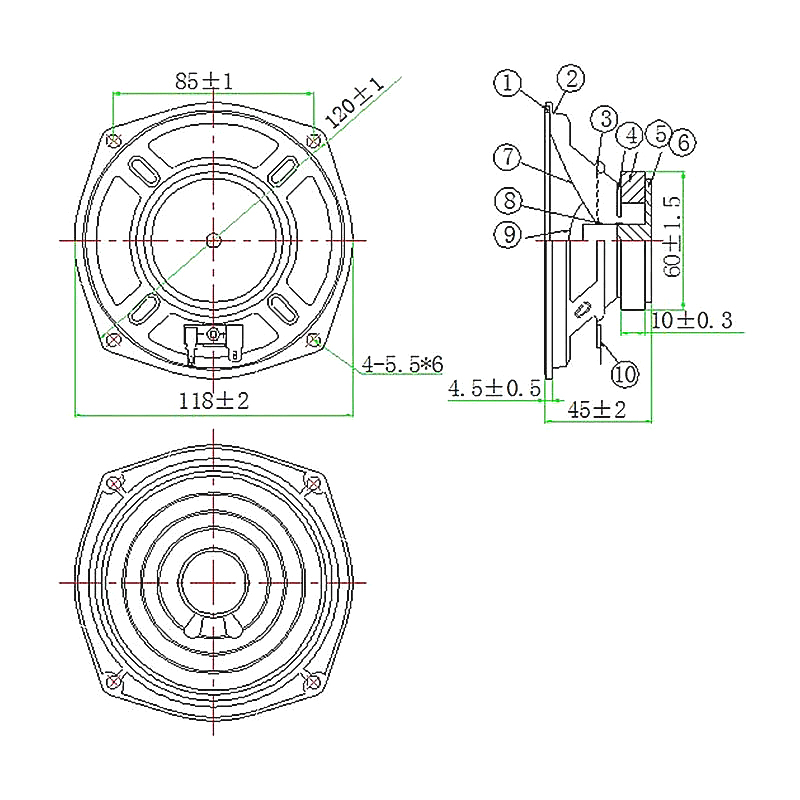

Dimension:118*118*44.5H mm
Cone Material:Paper
Edge:Paper
Nominal Power:5W
Maximum Power:6W
Impedance:8±15%Ω
Voice coil:Φ14.28mm ASV+CU
Fo:180±20%Hz
Response:Fo~15KHZ
S.P.L:94±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ60*32*10mm
Net weight:237g±8%
