Loudspeaker

Loudspeaker 40mm YD40-17-4N12.5P-R Min Full Range Multimedia Speaker Drivers

  • Loudspeaker 40mm YD40-17-4N12.5P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co LtdModelYD40-17-4N12.5P-RDimension:Φ40*18H mmCone Material:PU+PaperEdge:PaperNominal Power:3WMaximum

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD40-17-4N12.5P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 40mm YD40-17-4N12.5P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd



ModelYD40-17-4N12.5P-R

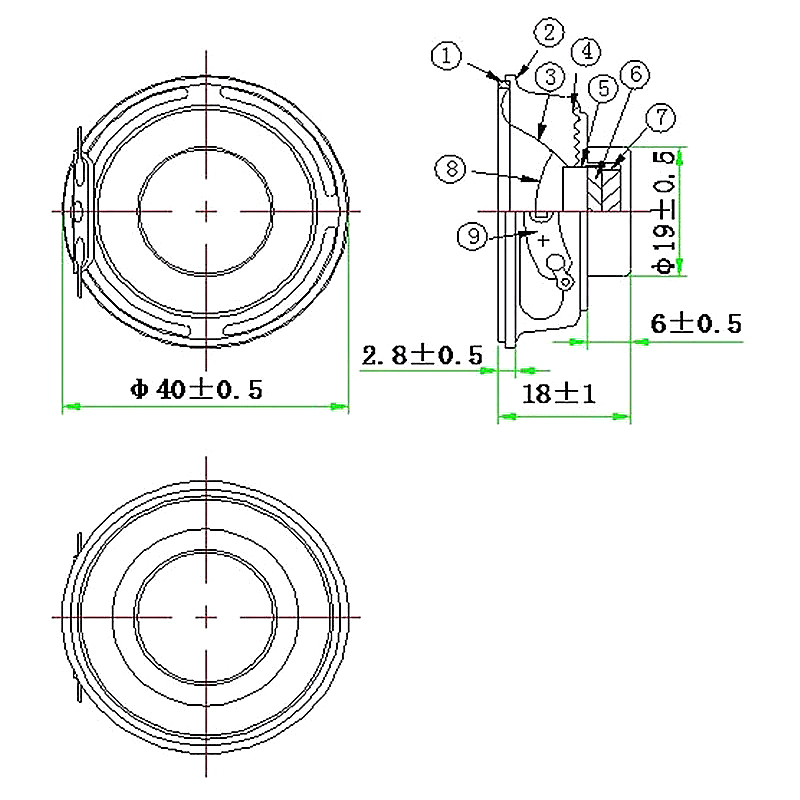

Dimension:Φ40*18H mm
Cone Material:PU+Paper
Edge:Paper
Nominal Power:3W
Maximum Power:5W
Impedance:4±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:250±20%Hz
Response:Fo~15KHZ
S.P.L:85±3dB(AT 0.1W/0.1M,Average of  0.6,0.8,1.0,1.2  KHz)
Magnet Size:Φ12.5*2.5mm
Net weight:19g±8%
