Loudspeaker 40mm YD40-16-8N12.5P-R Min Full Range Equipment Speaker Drivers

  • Loudspeaker 40mm YD40-16-8N12.5P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co LtdModelYD40-16-8N12.5P-RDimension:Φ40*8.5H mmCone Material:PaperEdge: PaperNominal Power:0.2WMaximum

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD40-16-8N12.5P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 40mm YD40-16-8N12.5P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD40-16-8N12.5P-R

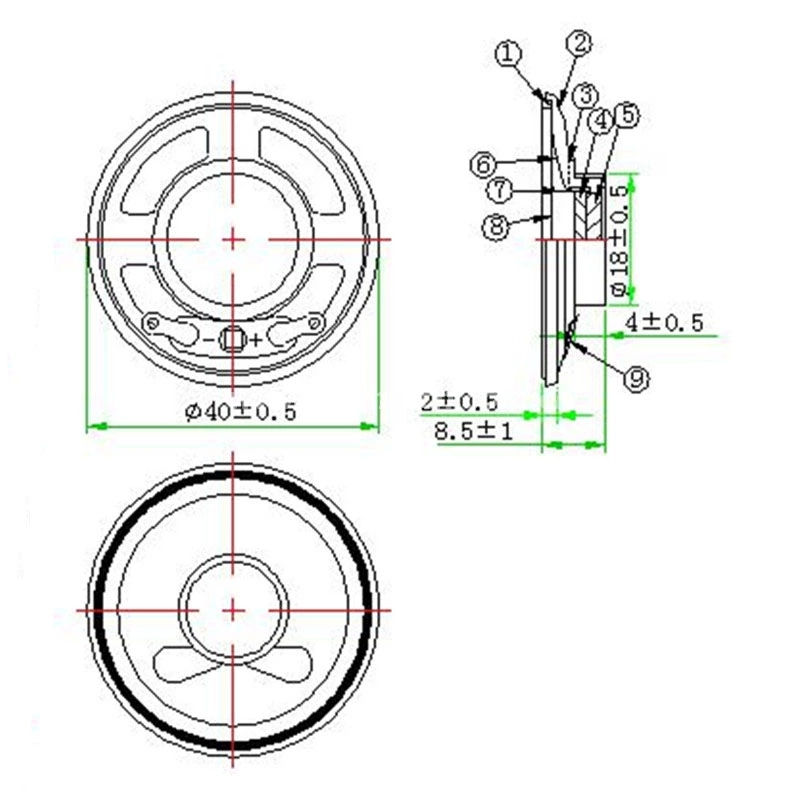

Dimension:Φ40*8.5H mm
Cone Material:Paper
Edge: Paper
Nominal Power:0.2W
Maximum Power:1W
Impedance:8Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:650±20%

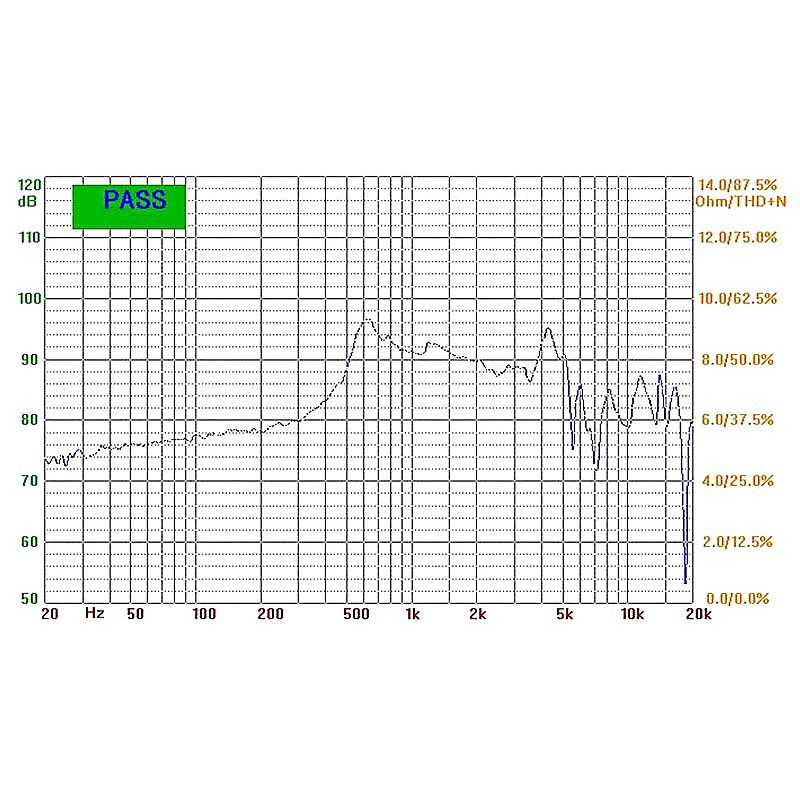

Response:Fo~5.5KHZ
S.P.L:91±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2.0mm
Net weight:12g±8%
