Loudspeaker

Loudspeaker 77mm YD77-01-8N12.5P-R Min Full Range car Speaker Drivers

  • Loudspeaker 77mm YD77-01-8N12.5P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD77-01-8N12.5P-RDimension:Φ77*18.5H mmCone Material:PaperEdge:PaperNominal Power:2WMaximum Power:3W

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD77-01-8N12.5P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 77mm YD77-01-8N12.5P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD77-01-8N12.5P-R

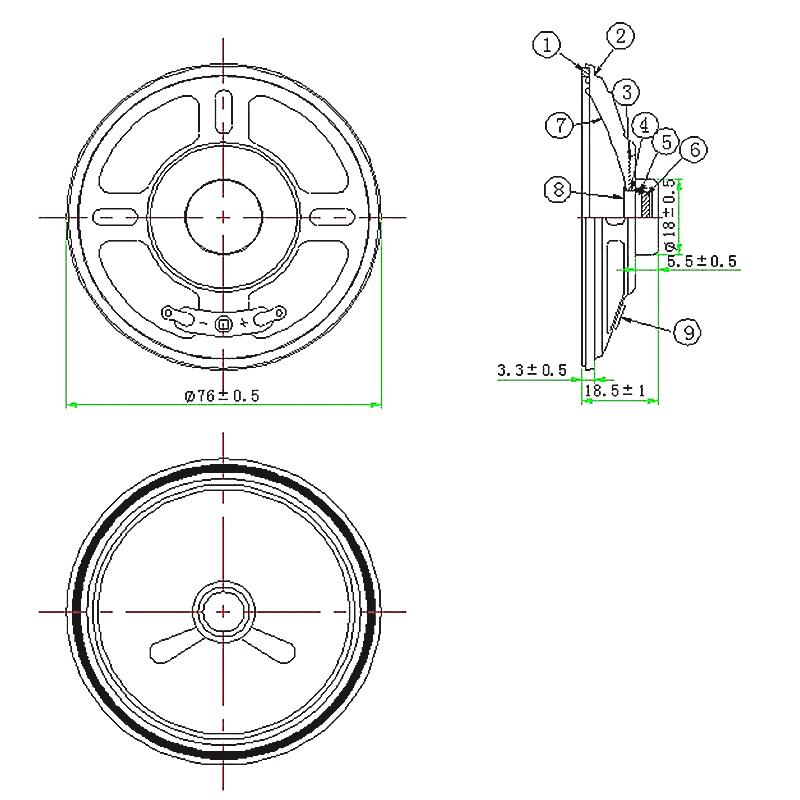

Dimension:Φ77*18.5H mm
Cone Material:Paper
Edge:Paper
Nominal Power:2W
Maximum Power:3W
Impedance:8±15%Ω
Voice coil:Φ13.28mm PL+CU
Fo:350±20%Hz

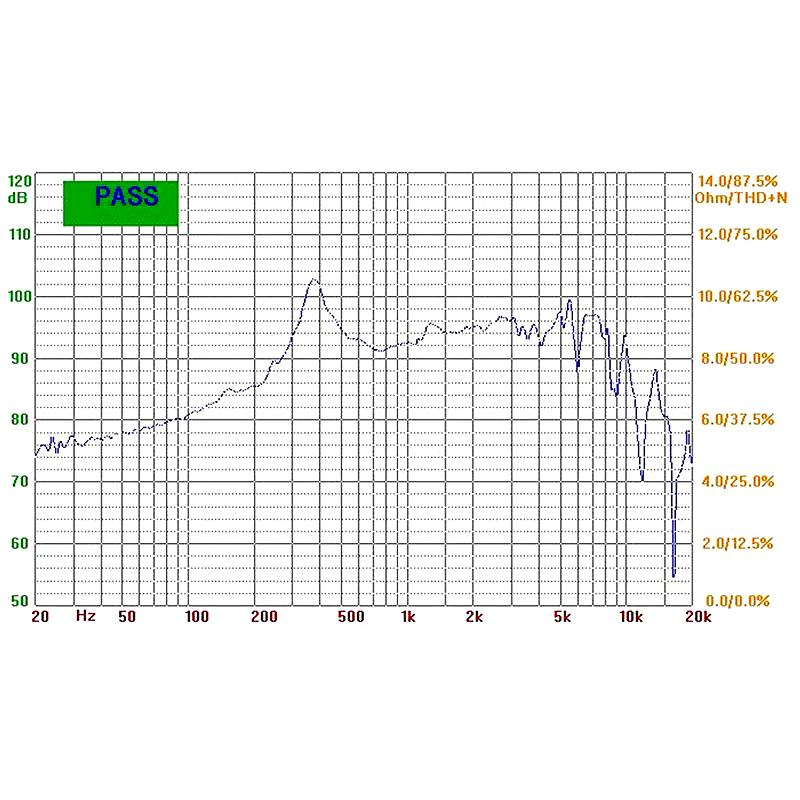

Response:Fo~8KHZ
S.P.L:92±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ12.5*2.5mm
Net weight:25g±8%
