Loudspeaker YD103-97-4F70U 103mm*103mm 4" Car Speaker drivers Used for Audio System car door speaker

  • ModelYD103-97-4F70UDiameter: 103Cone Material: PaperEdge: FoamNominal Power: 30WMaximum Power: 40WImpedance: 415%ΩFo: 13020%HzResponse: Fo-10kHzS.P.L: 903dB/W/MMagnet Size: Φ70Φ3210Net weight:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD103-97-4F70U
  • Diameter: 103
  • Description
  • Order

Product Description

YD103-97-4F70U-Model-2

ModelYD103-97-4F70U
Diameter: 103
Cone Material: Paper
Edge: Foam
Nominal Power: 30W
Maximum Power: 40W
Impedance:  4±15%Ω
Fo: 130±20%Hz
Response: Fo-10kHz
S.P.L: 90±3dB/W/M

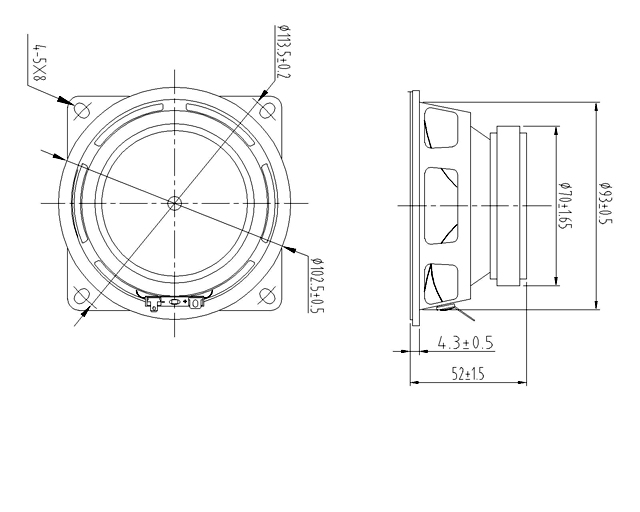

Magnet Size: Φ70×Φ32×10
Net weight:

YD103-97-4F70U-Q
