Car Speaker

Loudspeaker YD103-9-8F70U 116mm 4.6" Car Speaker Unit Used for car speaker System or door speaker

  • Model：YD103-9-8F70UDiameter: 116mmCone Material: PaperEdge: FoamNominal Power: 15WMaximum Power: 25WImpedance: 815%ΩFo: 12020%HzResponse: Fo-15kHzS.P.L: 883dB/W/MMagnet Size: Φ70Φ3210Net weight:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD103-9-8F70U
  • Diameter: 116mm
  • Description
  • Order

Product Description

YD103-9-8F70U-Model

Model：YD103-9-8F70U
Diameter: 116mm
Cone Material: Paper
Edge: Foam
Nominal Power: 15W
Maximum Power: 25W
Impedance:  8±15%Ω
Fo: 120±20%Hz

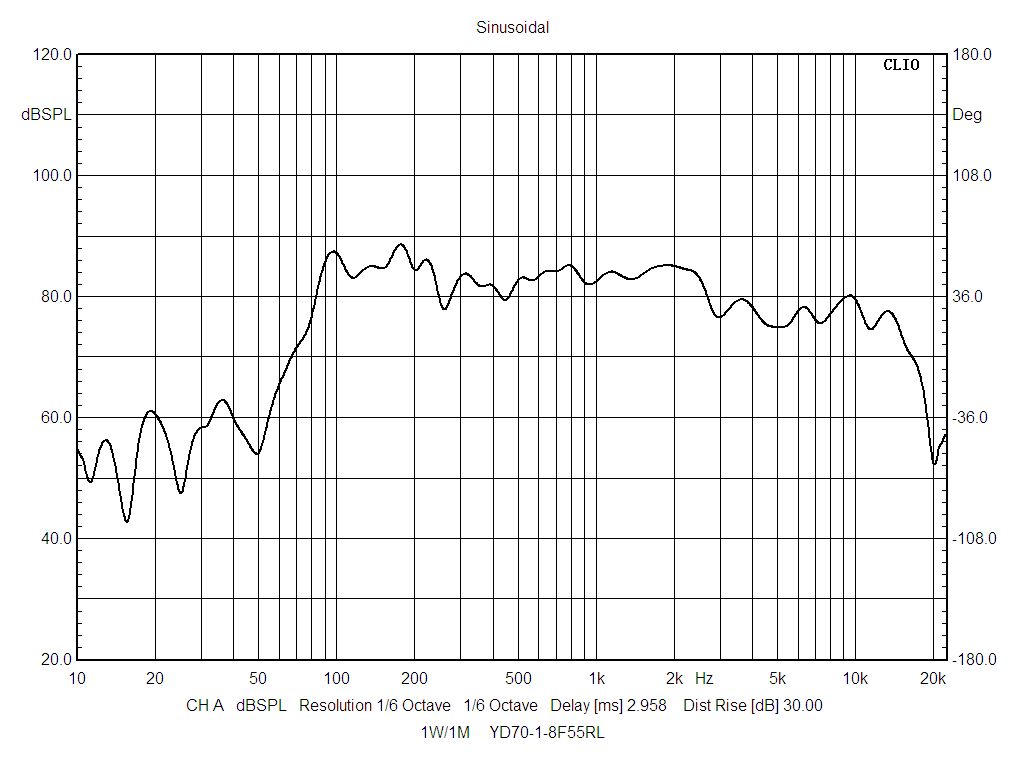

Response: Fo-15kHz
S.P.L: 88±3dB/W/M

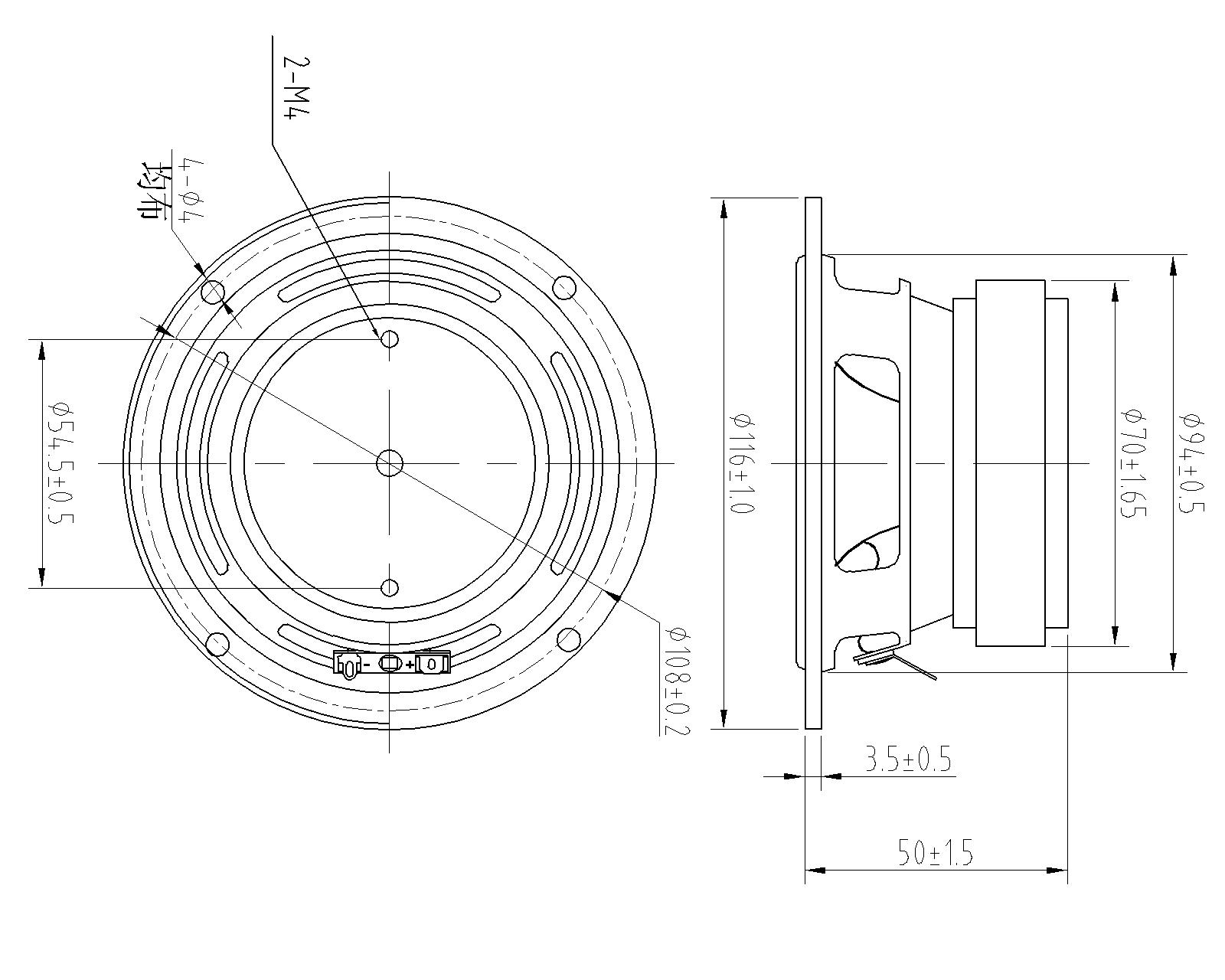

Magnet Size: Φ70×Φ32×10
Net weight:

YD103-9-8F70U-Q
