Loudspeaker 102mm YD102-23-4F70P-R Min Full Range car Speaker Drivers

  • Loudspeaker 102mm YD102-23-4F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD102-23-4F70P-RDimension:Φ102*56H mmCone Material:InjectionEdge:RubberNominal Power:10WMaximum Powe

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD102-23-4F70P-R
  • Diameter: Φ102*56H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 102mm YD102-23-4F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd







ModelYD102-23-4F70P-R

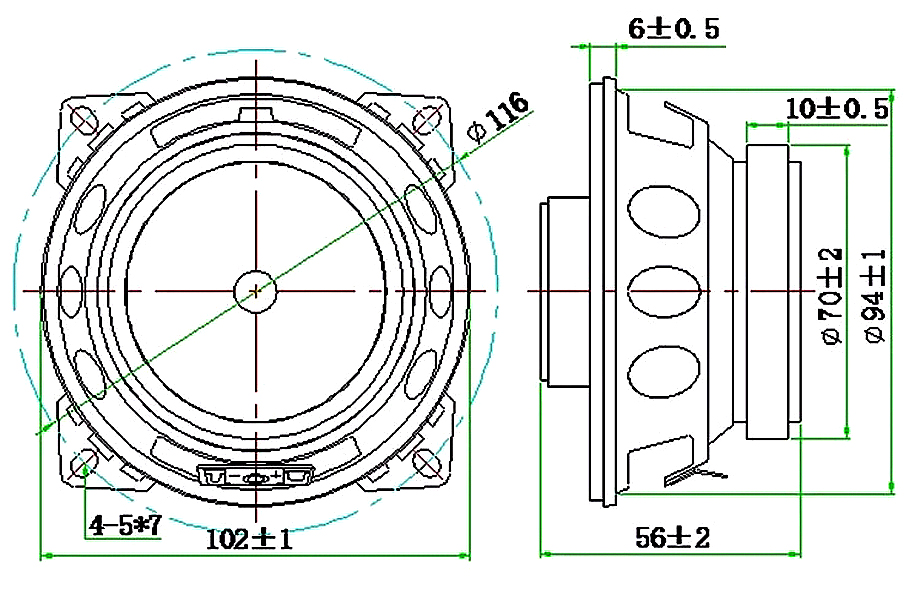

Dimension:Φ102*56H mm
Cone Material:Injection
Edge:Rubber
Nominal Power:10W
Maximum Power:20W
Impedance:4±15%Ω
Voice coil:Φ25.5mm Aluminum
Fo:130±20%Hz

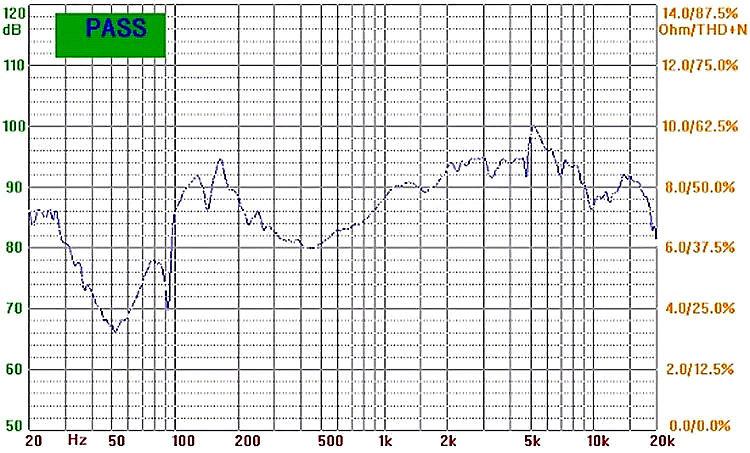

Response:Fo~20KHZ
S.P.L:87±3dB(at0.1W/0.1m, 0.5, 0.8, 1, 2 KHZ)
Magnet Size:Φ70*32*10mm
Net weight:416g±8%
