Loudspeaker

Loudspeaker YD385-50-6F126C 15 Inch Woofer High Quality Best Price

  • Model YD385-50-6F126CDiameter:Φ384mmCone Material:PaperEdge:ClothNominal Power:60wMaximum Power:120wImpedance:615%ΩVoice coil:Φ50.8mmFo:3520%HzResponse:Fo-1kH

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD385-50-6F126C
  • PDF
  • Description
  • Order

Product Description

2

                         Model

                  YD385-50-6F126C

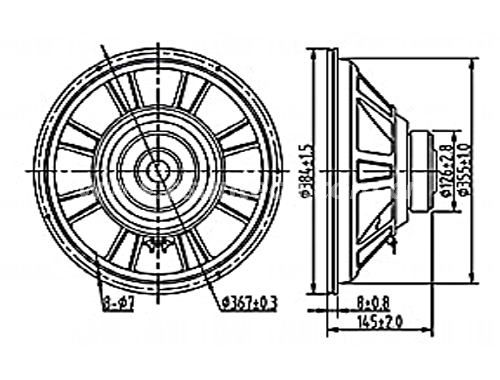

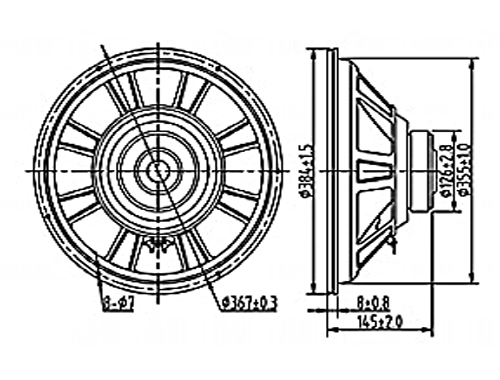

Diameter:

Φ384mm

Cone Material:

Paper

Edge:

Cloth

Nominal Power:

60w

Maximum Power:

120w

Impedance:

6±15%Ω

Voice coil:

Φ50.8mm

Fo:

35±20%Hz

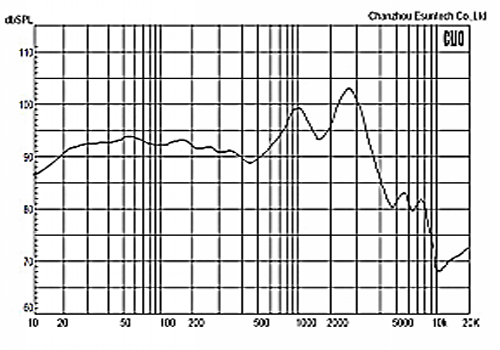

Response:

Fo-1kHz

S.P.L:

95±3dB/1W/0.5M

Magnet Size:

Φ126×62×20(Ferrite)

Net weight:

3030g

3
