Loudspeaker

Loudspeaker YD77-14-8N12.5C 3 Inch 77mm 22mm magnet 4/8/16/32ohm Full Range Round loudest audio speaker drivers

  • Model YD77-14-8N12.5CDiameter:Φ77mmCone Material:PaperEdge:ClothNominal Power:4.0wMaximum Power:5.0wImpedance:815%ΩVoice coil:Φ13.3mmFo:16020%HzResponse:Fo-1

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD77-14-8N12.5C
  • PDF
  • Description
  • Order

Product Description

2

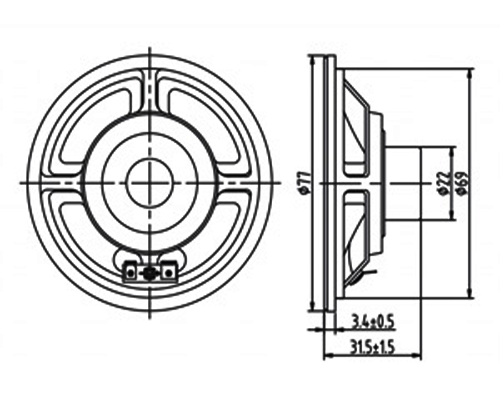

                          Model                  YD77-14-8N12.5C

Diameter:

Φ77mm

Cone Material:

Paper

Edge:

Cloth

Nominal Power:

4.0w

Maximum Power:

5.0w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

160±20%Hz

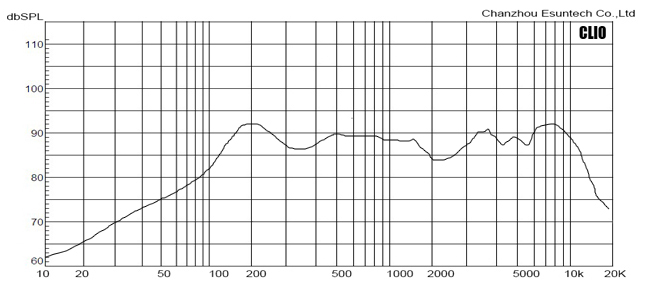

Response:

Fo-10kHz

S.P.L:

82±3dB/W/M

Magnet Size:

Φ12.5×2.5(NdFeB)

Net weight:

57.5g

3
