Loudspeaker 92mm YD92-02-8N12.5P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD92-02-8N12.5P-R

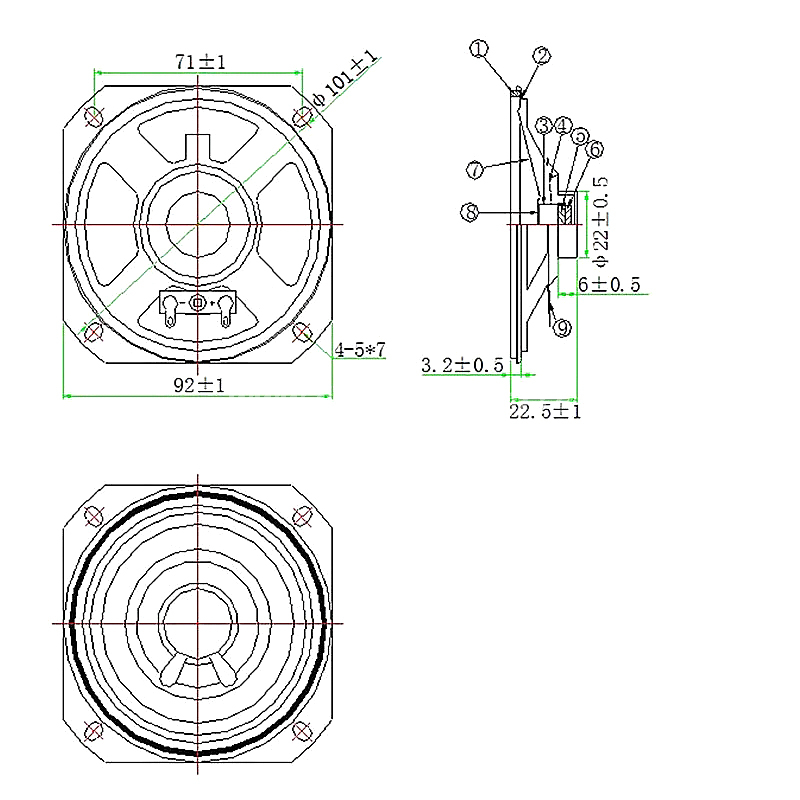

Dimension:92*92*22.5H mm
Cone Material:Paper
Edge:Paper
Nominal Power:3W
Maximum Power:5W
Impedance:8Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:220±20%
Response:Fo~10KHZ
S.P.L:92±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2mm
Net weight:45g±8%
