Car Speaker

Loudspeaker 102mm YD102-15-4F60P-R Min Full Range car Speaker Drivers

  • Loudspeaker 102mm YD102-15-4F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD102-15-4F60P-RDimension:102*102*38.5H mmCone Material:Paper Edge:RubberNominal Power:10WMaximum Po

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD102-15-4F60P-R
  • Diameter: 102*102*38.5H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 102mm YD102-15-4F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD102-15-4F60P-R

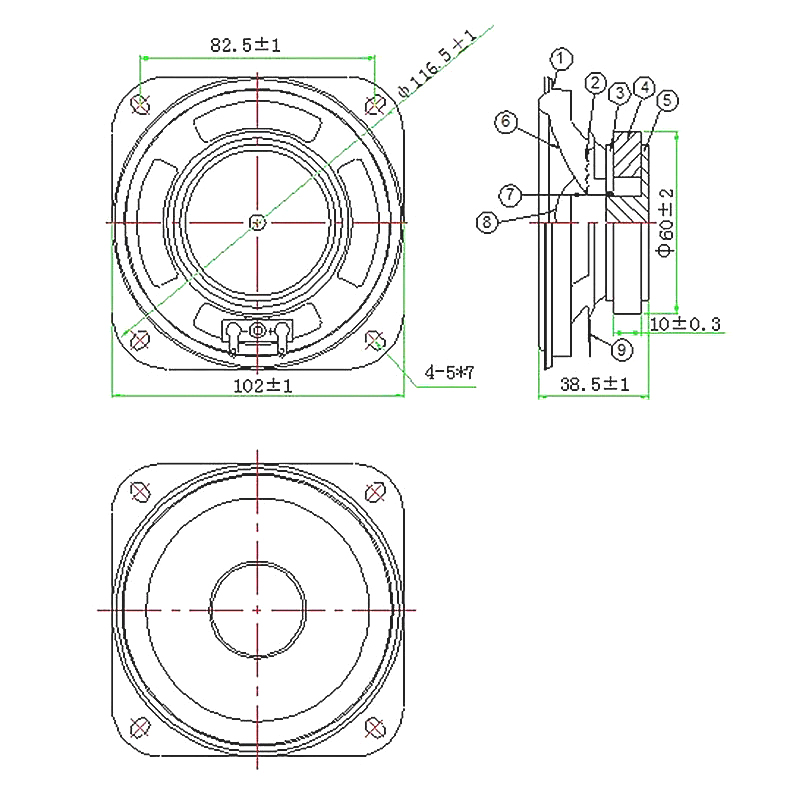

Dimension:102*102*38.5H mm
Cone Material:Paper
Edge:Rubber
Nominal Power:10W
Maximum Power:11W
Impedance:4±15%Ω
Voice coil:Φ19.45mm ASV+Cu
Fo:120±20%Hz
Response:Fo~13KHZ
S.P.L:88±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ60*32*12mm
Net weight:280g±8%
