Car Speaker

Loudspeaker 102mm YD102-10-4F70P-R Min Full Range car Speaker Drivers

  • Loudspeaker 102mm YD102-10-4F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD102-10-4F70P-RDimension:102*102*46H mmCone Material:PaperEdge:FoamNominal Power:10WMaximum Power:2

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD102-10-4F70P-R
  • Diameter: 102*102*46H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 102mm YD102-10-4F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD102-10-4F70P-R

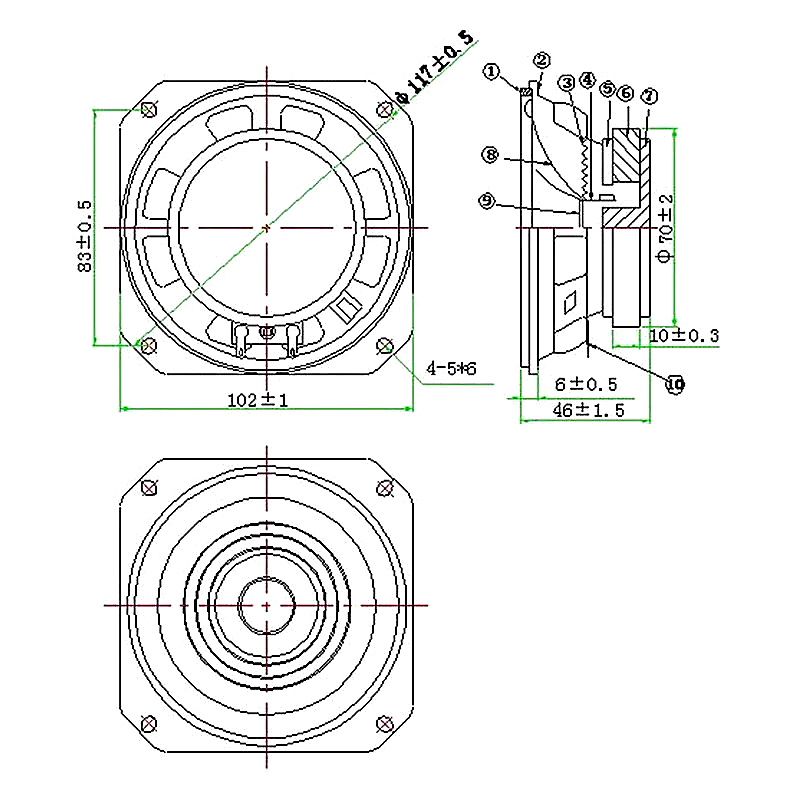

Dimension:102*102*46H mm
Cone Material:Paper
Edge:Foam
Nominal Power:10W
Maximum Power:20W
Impedance:4±15%Ω
Voice coil:Φ19.45mm ASV+Cu
Fo:110±20%Hz

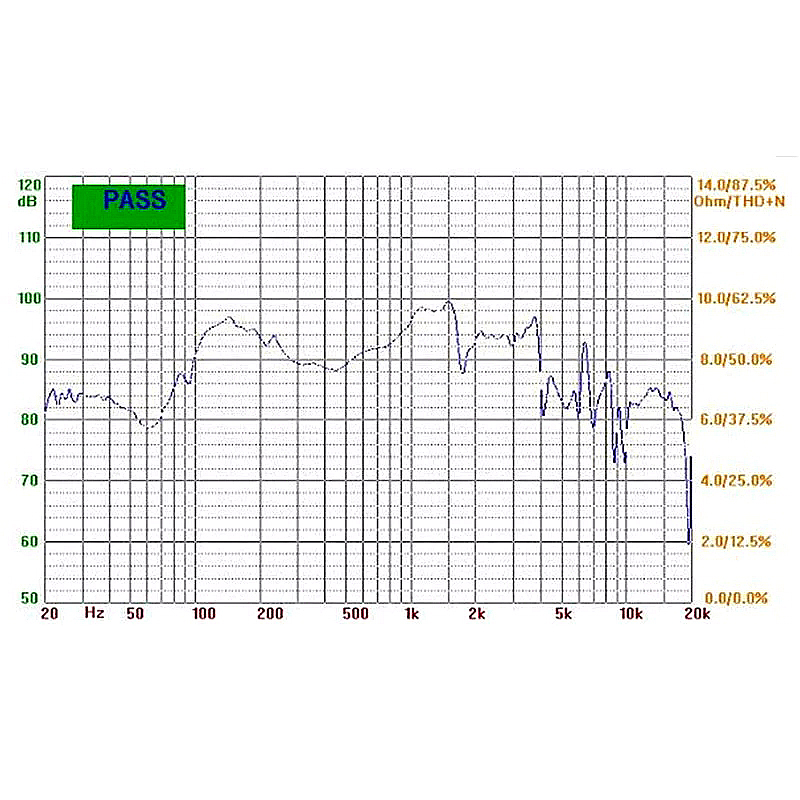

Response:Fo~15KHZ
S.P.L:95±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ70*32*10mm
Net weight:390g±8%
