Medical Equipment Speaker

Loudspeaker 50mm YD50-01-45F32P-R Min Full Range Equipment Speaker Drivers

  • Loudspeaker 50mm YD50-01-45F32P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co LtdModelYD50-01-45F32P-RDimension:Φ50*17H mmCone Material:PaperEdge:PaperNominal Power:0.25WMaximum Pow

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-01-45F32P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 50mm YD50-01-45F32P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD50-01-45F32P-R

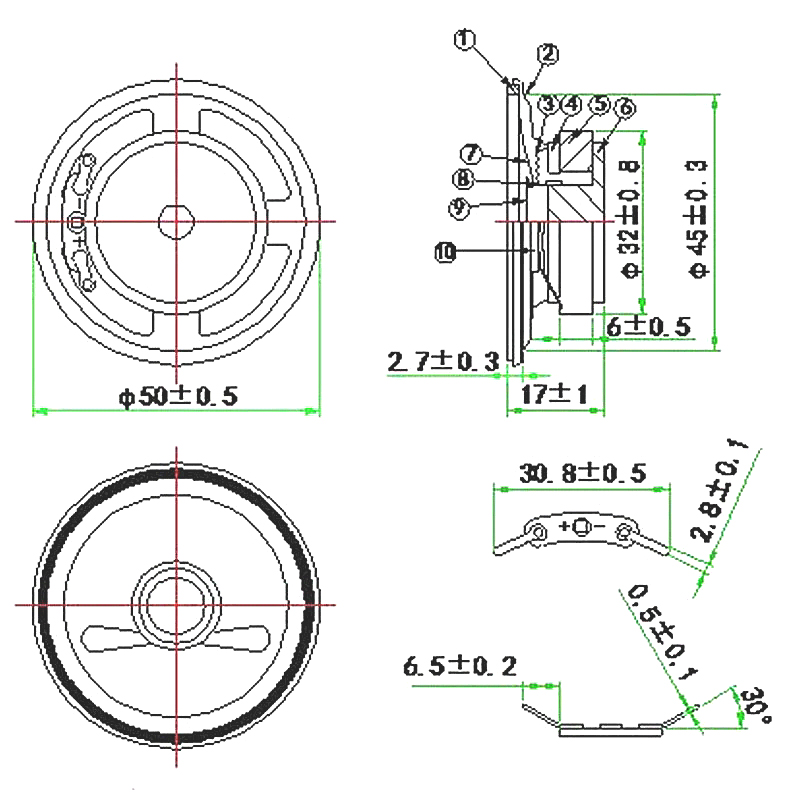

Dimension:Φ50*17H mm
Cone Material:Paper
Edge:Paper
Nominal Power:0.25W
Maximum Power:1W
Impedance:45Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:450±20%
Response:Fo450~5KHZ
S.P.L:82±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ32*18*6mm
Net weight:45g±8%
