Loudspeaker

Loudspeaker YD385-01-4F126U 15 Inch Midrange Stereo Subwoofer Be Used for Speaker Box

  • Model YD385-01-4F126UDiameter:Φ384mmCone Material:PaperEdge:FoamNominal Power:60wMaximum Power:150wImpedance:415%ΩVoice coil:Φ50.8mmFo:2520%HzResponse:Fo-1kH

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD385-01-4F126U
  • PDF
  • Description
  • Order

Product Description

2


                           Model                 YD385-01-4F126U

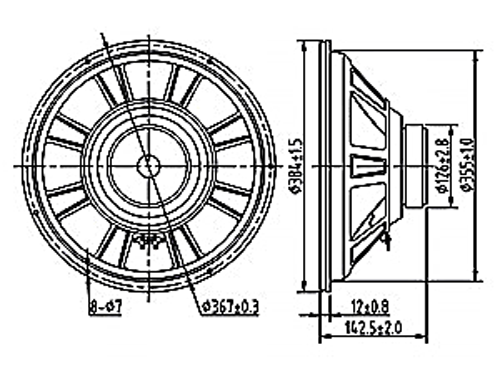

Diameter:

Φ384mm

Cone Material:

Paper

Edge:

Foam

Nominal Power:

60w

Maximum Power:

150w

Impedance:

4±15%Ω

Voice coil:

Φ50.8mm

Fo:

25±20%Hz

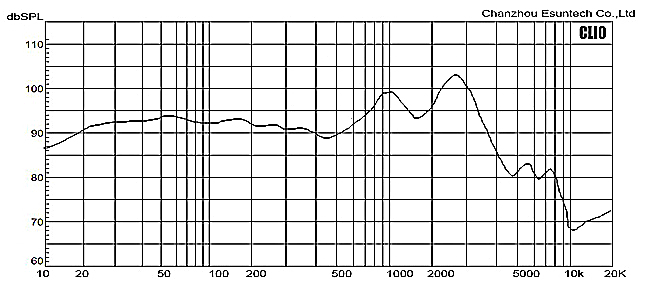

Response:

Fo-1kHz

S.P.L:

90±3dB/1W/0.5M

Magnet Size:

Φ120×60×20(Ferrite)

Net weight:

2550g

3
