Product Description

Loudspeaker 40mm YD40-15-8N12.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD40-15-8N12.5P-R

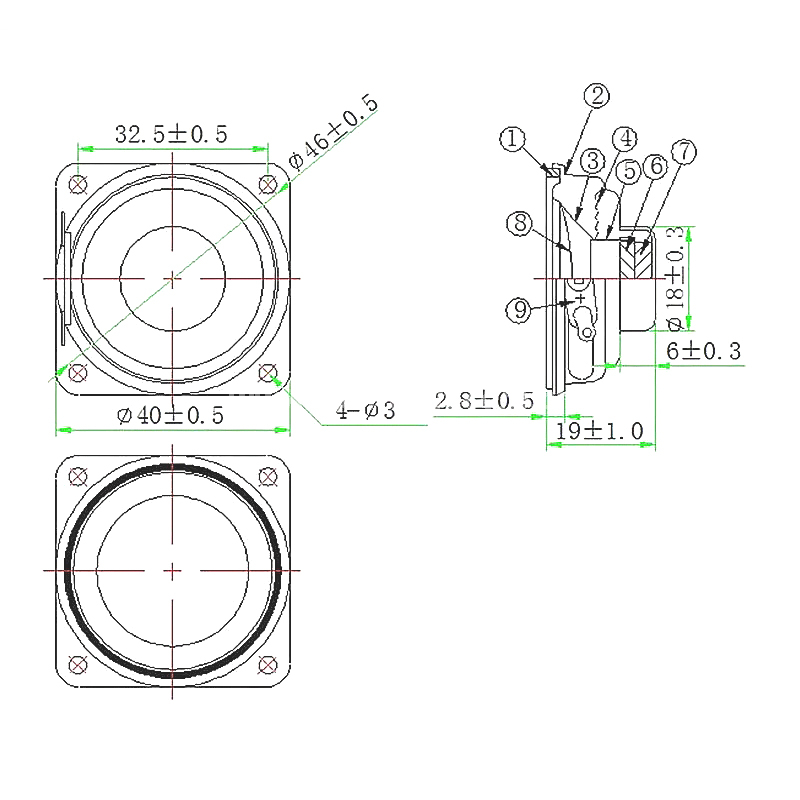

Dimension:Φ40*19H mm
Cone Material:PU+Paper
Edge:PU
Nominal Power:3W
Maximum Power:4W
Impedance:8±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:230±20%Hz

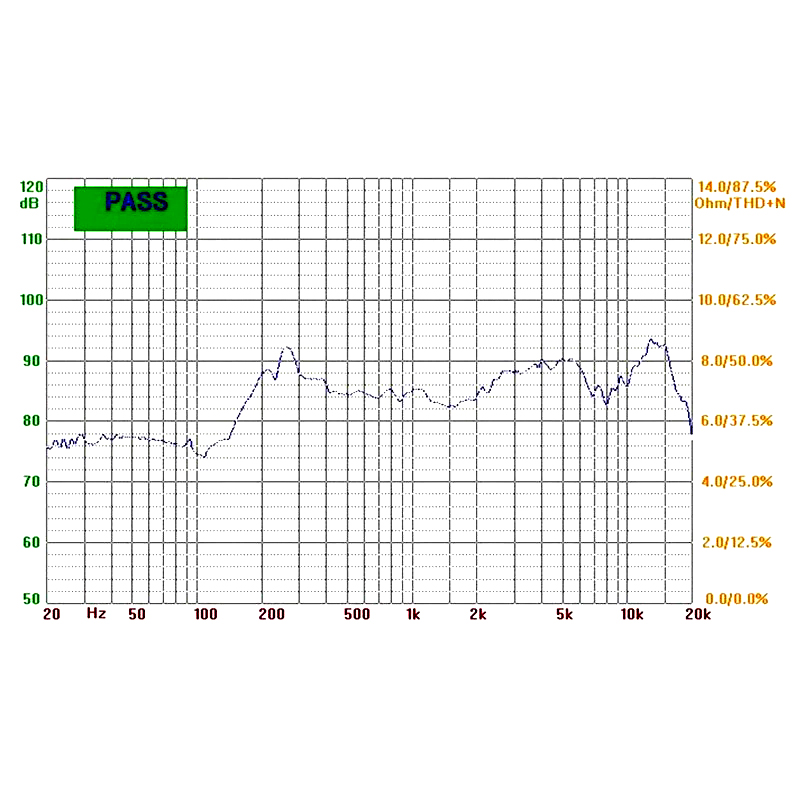

Response:Fo~20KHZ
S.P.L:85±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ12.5*3.0mm
Net weight:16g±8%
