Loudspeaker 102mm YD102-07-4F55P-R Min Full Range car Speaker Drivers

  • Loudspeaker 102mm YD102-07-4F55P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD102-07-4F55P-RDimension:102*102*34H mmCone Material:PaperEdge:FoamNominal Power:6WMaximum Power:8W

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD102-07-4F55P-R
  • Diameter: 102*102*34H mm
  • PDF
  • Description
  • Order

Product Description


Loudspeaker 102mm YD102-07-4F55P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD102-07-4F55P-R

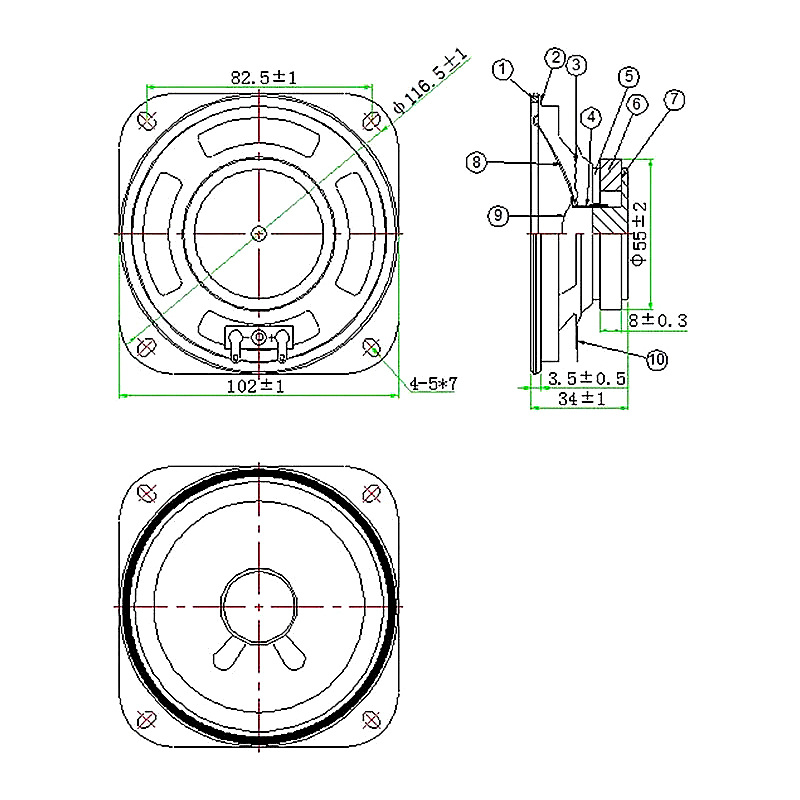

Dimension:102*102*34H mm
Cone Material:Paper
Edge:Foam
Nominal Power:6W
Maximum Power:8W
Impedance:4±15%Ω
Voice coil:Φ14.28mm ASV+Cu
Fo:135±20%Hz

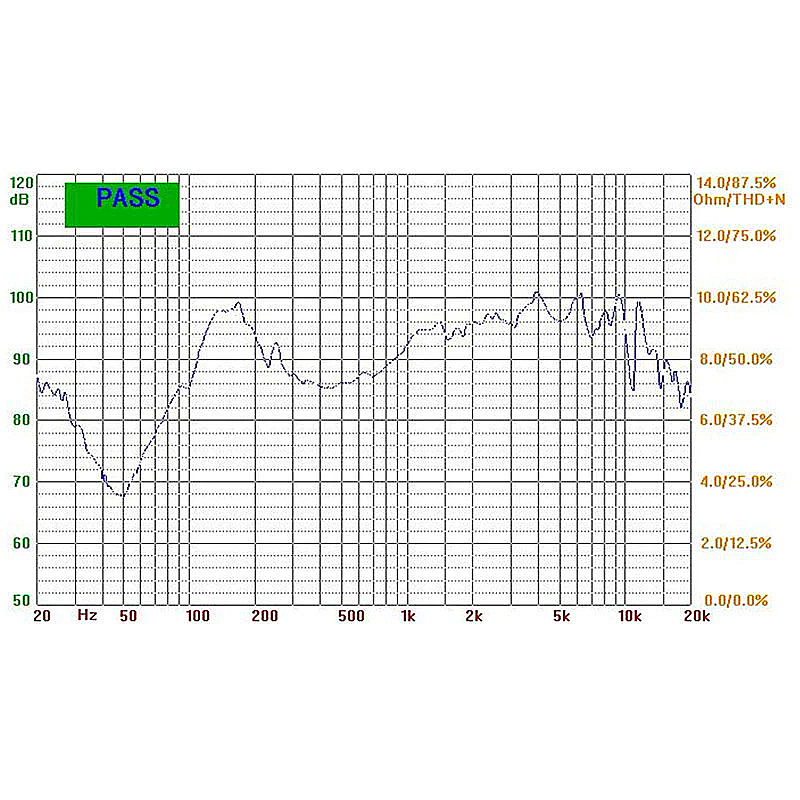

Response:Fo~13KHZ
S.P.L:91±3dB ( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ55*25*8mm
Net weight:170g±8%
